Removing and Cleaning Fuel Strainer

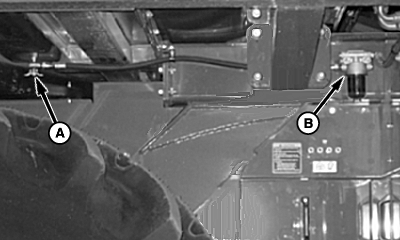

N93571-UN-13JUL11

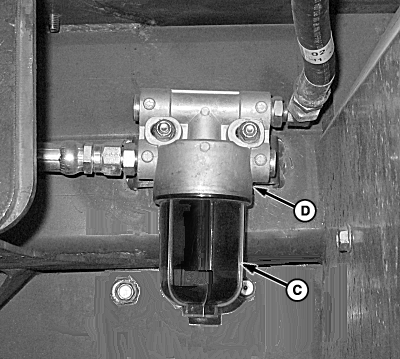

N93572-UN-13JUL11

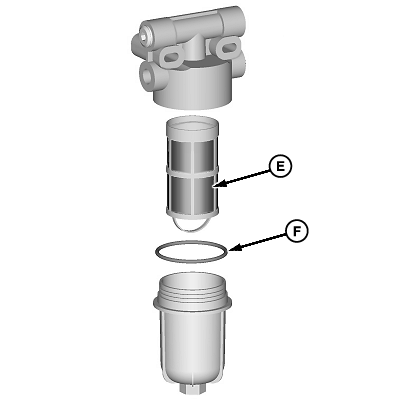

N80599-UN-01MAY08

A - Fuel Shutoff Valve

B - Fuel Strainer Assembly

C - Strainer Bowl

D - Strainer Base

E - Strainer Screen

F - O-ring

Recommended Service Interval
Remove and Clean Fuel Strainer	Every 250 Hours or As Needed

Inspect fuel strainer every 50 hours and clean if buildup is visible on strainer screen or if service code is displayed on armrest display unit (ADU). Otherwise, remove and clean every 250 hours.

NOTE: Do not clean fuel strainer and change primary and final fuel filters at the same time. Doing so makes it difficult to restart the machine. Perform this procedure, then run the engine before changing fuel filters.

1. If machine has not been running recently, start engine and run 3—5 minutes at slow idle.

2. Shut off engine.

3. Close fuel shutoff valve (A).

4. Thoroughly clean dirt and debris from fuel strainer assembly (B) and surrounding area.

5. Remove strainer bowl (C) from strainer base (D) using a 25 mm (1 in.) socket on bottom of bowl.

6. Clean filter screen (E) and strainer bowl.

7. Inspect O-ring (F) for damage. Replace if necessary.

8. Install screen and strainer bowl in reverse order of removal.

9. Open fuel shutoff valve.

10. Start engine and run 3—5 minutes at slow idle.
