Fuel Tank—Filling

CAUTION:

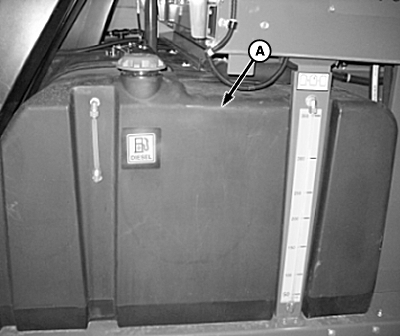

N93569
N93569-UN-13JUL11

A - Fuel Tank

Handle fuel carefully. Do not refuel machine while smoking. Shut OFF engine, set parking brake and remove key before filling tank.

Do not overfill fuel tank. Bodily injury can result from fuel splash back. Leakage can result from expansion of fuel. If tank is filled too full, then left in direct sunlight or if temperature gets too hot, tank will overflow.

IMPORTANT: Interim Tier 4 Engines: Use ONLY ultra low sulfur diesel fuel. See Diesel Fuel and Biodiesel Fuel in this section for further information.

Fill fuel tank (A) at end of each day. This prevents condensation in tank as moist air cools.

DP99999,00007A9-19-20110713
