Dry Chemical Fire Extinguisher Location

N95986-UN-15DEC11

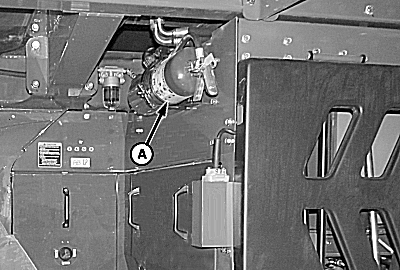

One 10 lb. ABC dry chemical fire extinguisher is located on the left side of machine on the front of the power module.

This extinguisher is for use on grease or chemical fires and is preferred when extinguishing an engine fire through the side panel portholes.
