Auxiliary Water System

IMPORTANT: To keep auxiliary water system functioning correctly:

  • Maintain at least 190 L (50 gal.) water in tank
  • Operate spray nozzle daily
  • Drain electric pump to prevent damage from freezing

NOTE: As the auxiliary water system nozzle is depressed, a slight pause occurs before pump provides full stream.

N96011
N96011-UN-06DEC11

N83568
N83568-UN-08APR09

N95987
N95987-UN-08FEB12

A - Storage Box

B - Spray Nozzle

C - Access Panel

D - Drain Valve

E - Electric Pump

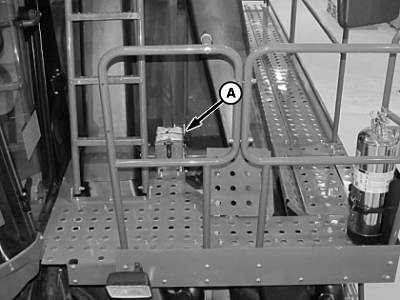

An auxiliary water system is provided to use as an alternative to the portable fire extinguisher in case of fire. The auxiliary water system spray nozzle (B) and hose are located in storage box (A) on the cab platform. Read the instruction label located on the storage box lid on how to use and maintain the system.

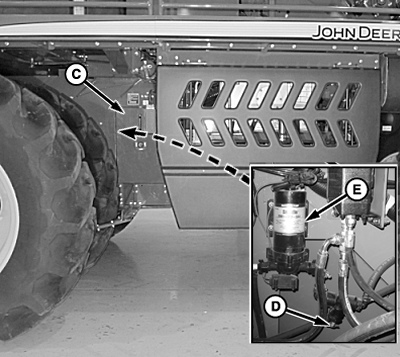

An electric pump (E) draws solution from the moistener system tank and pressurizes the hose and nozzle. If the machine is parked overnight or stored during freezing weather, the pump and hose must be drained. The pump and drain valve (D) are located on the inner side of the left-hand platform support frame, behind access panel (C).

DP99999,00007BF-19-20111206
