Hazard Lights

CAUTION: Warning lights must be turned on when transporting to alert other drivers.

To avoid motorist confusion, do not operate work lights when transporting on public roadways.

N95995-UN-06DEC11

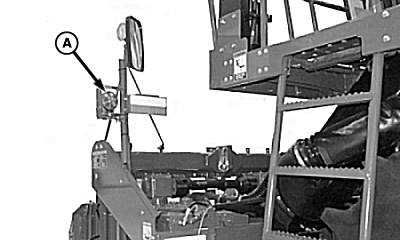

Front Hazard Lights (Left-hand Side)

N95996-UN-06DEC11

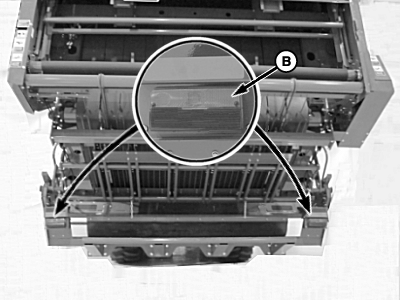

Rear Hazard Lights (Transport Mode)

N95997-UN-06DEC11

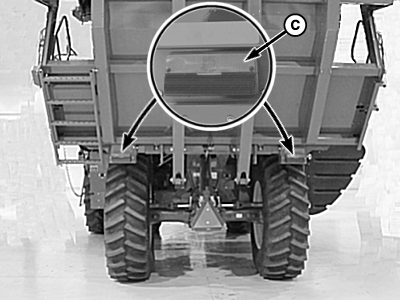

Rear Hazard Lights (Harvest Mode)

A - Amber Warning Lights

B - Amber Warning Lights (Transport Mode)

C - Amber Warning Lights (Harvest Mode)

When driving machine on a public roadway, flashing amber warning lights (A—C) provide warning to other drivers. These lights are located on both sides at the front and rear of machine.
