Road Lights

CAUTION: Road lights must be turned on to alert other drivers when driving machine on public roadways.

N95998-UN-07DEC11

N95999-UN-07DEC11

N96000-UN-07DEC11

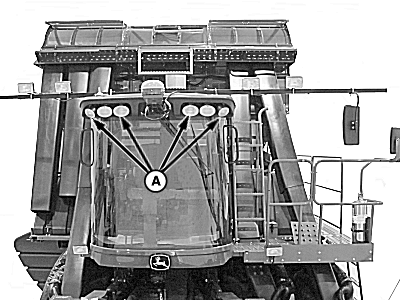

A - Cab Headlights

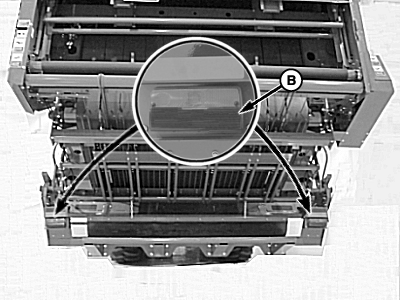

B - Red Tail Lights (Transport Mode)

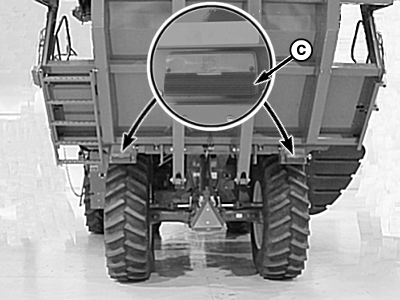

C - Red Tail Lights (Harvest Mode)

When road light switch is pressed, cab headlights (A) and red tail lights (B and C) come on. Flashing amber hazard lights also come on. (See HAZARD LIGHTS in this section.)

Turn on road lights whenever driving machine on public roadways.
