Field Lights

N96001-UN-09DEC11

N96002-UN-09DEC11

N96012-UN-07DEC11

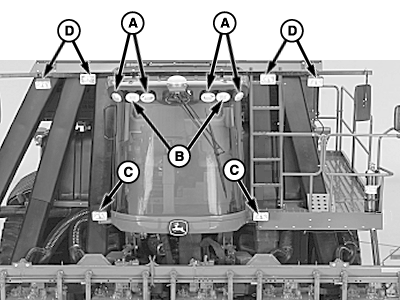

A - Cab Road Lights

B - Cab Field Lights

C - Lower Cab Platform Lights

D - Light Bar Lights

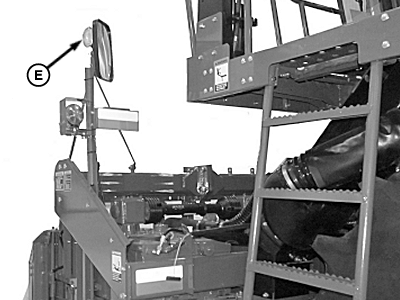

E - Row Finder Lights

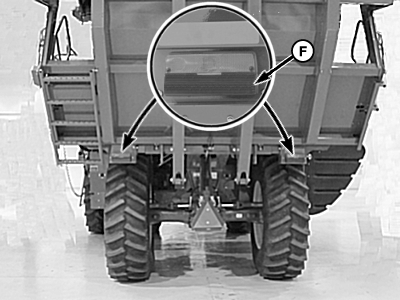

F - Tail Lights

When field lights switch is pressed, the following lights come on:

• Halogen cab road lights (A)
• HID cab field lights (B)
• Lower cab platform lights (C)
• Light bar lights (D)
• Tail lights (F)

With field lights switch on, row finder lights (E) can be turned on individually by moving the turn signal lever to either the left-hand turn or right-hand turn position.
