Work Lights

N96003-UN-08DEC11

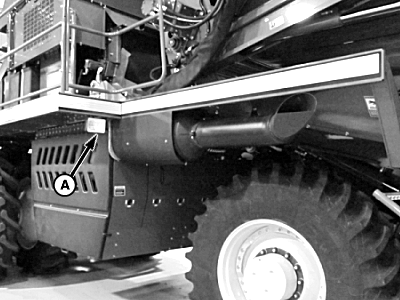

Power Module Light

N96004-UN-08DEC11

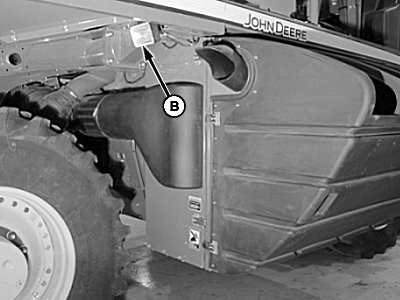

Cooling Module Light

N96005-UN-09DEC11

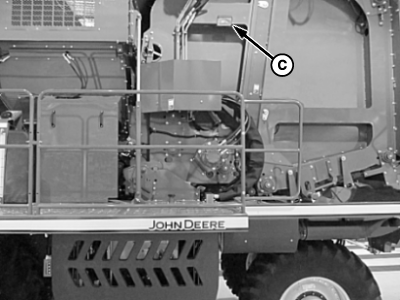

Baler Platform Light

N96006-UN-08DEC11

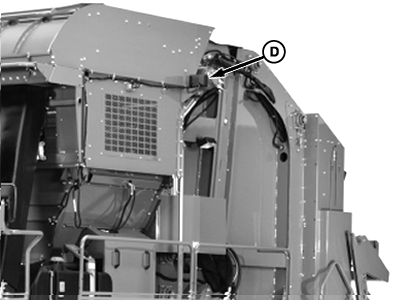

Accumulator Light (Left-hand Shown)

N96007-UN-08DEC11

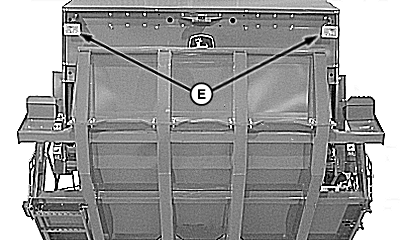

Wrap Box Lights

A - Power Module Light

B - Cooling Module Light

C - Baler Platform Light

D - Accumulator Light (2 used)

E - Wrap Box Light

NOTE: If road lights are on, work lights cannot be turned on.

The work light switch has two ON positions:

• Position 1: Power module light (A) and cooling module light (B) come on.
• Position 2: Baler platform light (C), accumulator lights (D), and wrap box lights (E) come on in addition to power module light and cooling module light.
