Turn Signals

N75983-UN-02MAY07

N96008-UN-08DEC11

N96009-UN-08DEC11

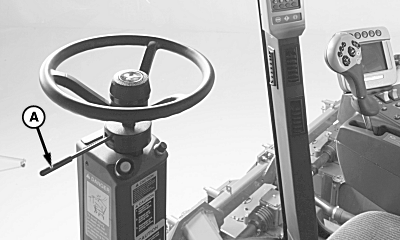

A - Turn Signal Lever

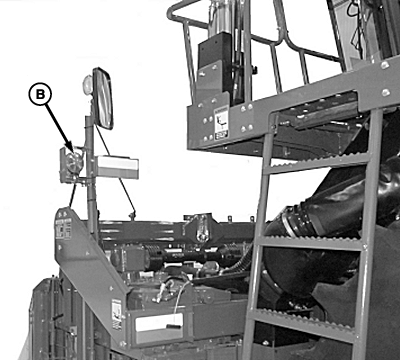

B - Front Amber Light

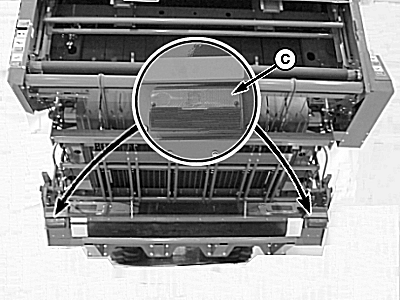

C - Rear Amber Light (Transport Mode)

When operating machine on road or highway, use turn signals.

NOTE: Turn signals are not self-cancelling, turn signal lever (A) must be returned to neutral position manually.

Key switch must be on for turn signals to operate.

Move turn signal lever down to signal left-hand turn and up for right-hand turn.

When a turn is signaled, front amber light (B) and rear amber light (C) on turn side flash to indicate direction of turn. Lights on opposite side of machine illuminate steady.
