Check Hydraulic and Hydrostatic Oil Level

1. NOTE: Machine must be in harvest mode configuration to check oil level accurately.


   N96018-UN-08FEB12


   N96019-UN-12DEC11

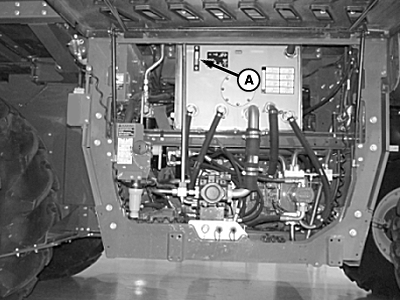

   A - Sight Gauge

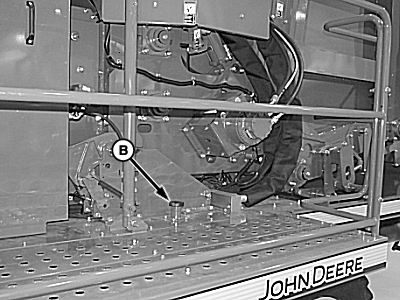

   B - Filler Cap

   Lower row units to the ground.

---




2. Check that oil level is visible in sight gauge (A) on hydraulic reservoir.

3. Remove filler cap (B) and add oil if necessary. (See HYDRAULIC, HYDROSTATIC, AND TRANSMISSION OILS in Fuels, Lubricants, and Coolants section for proper oil.)
