Check Engine Coolant Level
CAUTION: Explosive release of fluids from pressurized cooling
system can cause serious burns.
Do not remove surge tank cap until cap is cool enough to touch with bare hands. Slowly loosen cap to relieve pressure before removing completely.
Never add coolant when engine is overheated. Wait for it to cool.
TS281-UN-23AUG88
N96250-UN-12DEC11

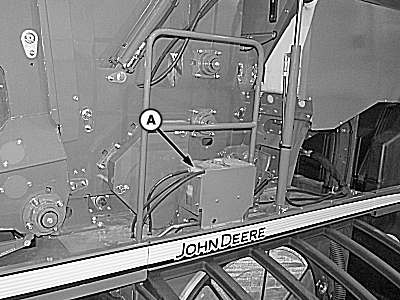

A - Coolant Surge Tank
With engine cold, coolant level in surge tank (A) must be between maximum and minimum level marks on tank.Add coolant to surge tank as needed. (See DIESEL ENGINE COOLANT in Fuels, Lubricants, and Coolants section for coolant specifications.)
|
DP99999,00007D0-19-20111213 |
