Cotton Picker Safety Features

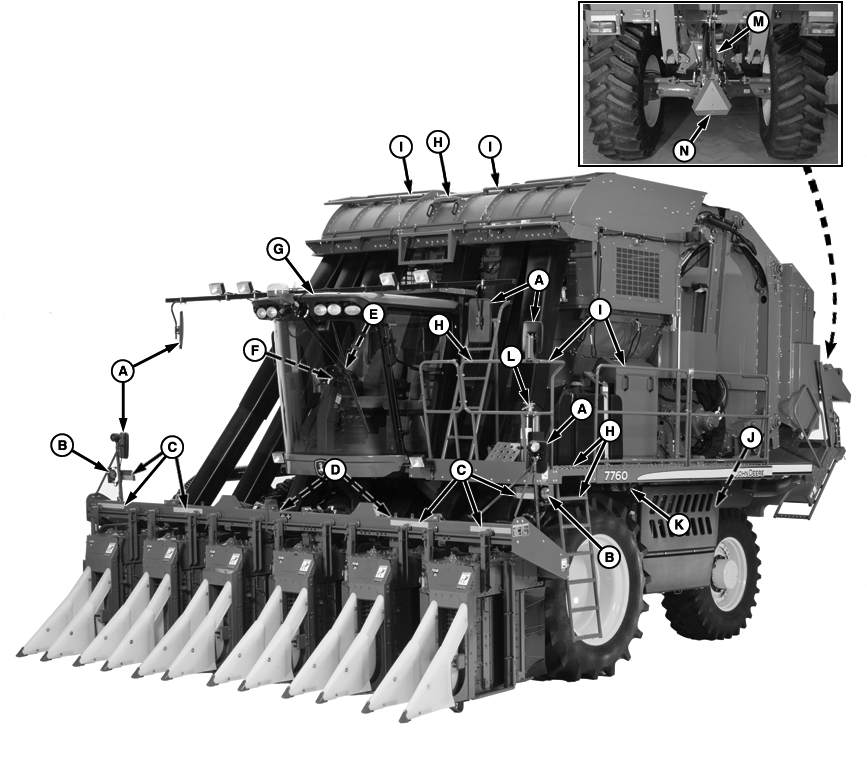

N96212-UN-07FEB12

A - REARVIEW MIRRORS—For view of surroundings.

B - HAZARD LIGHTS, FRONT AND REAR—Alerts oncoming and following traffic of your presence on roadway.

C - REFLECTORS, FRONT AND REAR—Alerts traffic of your presence on roadway.

D - UNIT LIFT CYLINDER SAFETY STOPS—Mechanically locks cylinders to prevent units from moving down.

E - HORN—To alert others working in area.

F - PARK BRAKE—Prevents unintended machine movement. Automatically engages when multifunction control handle moved to neutral.

G - CAB WITH SEAT BELT AND OPERATOR PRESENCE SYSTEM—For operator comfort and safety. System senses presence of operator in seat whenever row units are engaged and stops machine if operator leaves seat for more than 5 seconds.

H - DIVOTTED STEPS AND PLATFORM—Helps prevent slipping when on platform or ladder; also reduces dirt and mud buildup.

I - HAND RAILS—Gives support when climbing on machine, walking on platform, or walking on accumulator.

J - STARTER SOLENOID SHIELDING—For engine bypass start protection.

K - FIRE EXTINGUISHER (DRY CHEMICAL)—Rechargeable 4.5 kg (10 lb.) ABC type dry chemical for use on grease, oil, chemical, or electrical fires.

L - FIRE EXTINGUISHER (WATER TYPE)—Rechargeable 9.5 L (2.5 gal.) water type for use on non-electrical fires such as cotton and lint.

M - BACKUP ALARM—Alerts others in area of machine backing up.

N - SMV EMBLEM—Alerts following traffic of your presence on roadway.

In addition to safety features described here, other components and systems, safety signs on machine, safety messages in Operator's Manual and elsewhere, as well as care and concern of a capable operator contribute to safety of operators and others nearby.
