Header Height Control Calibration

1. NOTE: If any diagnostic trouble codes are present in the HIC control unit, header height control system cannot be calibrated. Correct and clear codes before calibrating.


   N93042-UN-20JUN11

   Home Screen


   N87833-UN-26FEB10

   Control Console


   N95846-UN-16DEC11

   Calibration Main Screen

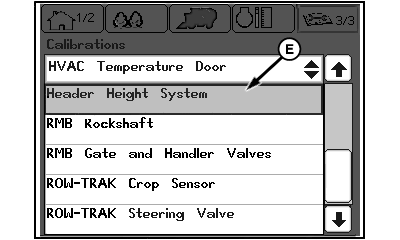

   N95852-UN-27FEB12

   Calibration Menu

   A - Diagnostics and Calibration Tab

   B - Selection Dial

   C - Confirm Button

   D - Drop-down Box

   E - Header Height System

   Position cotton picker on a level concrete surface.

---




2. NOTE: Hydraulic system oil temperature must be approximately 50 °C (120 °F) before beginning calibration.

   Start engine and run at slow idle until hydraulic oil temperature is approximately 50 °C (120 °F).

3. Raise and lower row units several times to warm up components, then fully lower all units.

4. Highlight diagnostics and calibration tab (A) on home screen using selection dial (B).

5. Press confirm button (C) three times to access calibration main screen.

6. Highlight calibration procedures drop-down box (D) and press confirm button. A drop-down calibration menu appears.

7. Highlight header height system (E) and press confirm button. The header height system calibration start screen appears.

8.

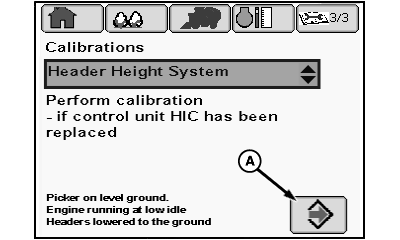

   N95853-UN-19DEC11

   Calibration Start Screen

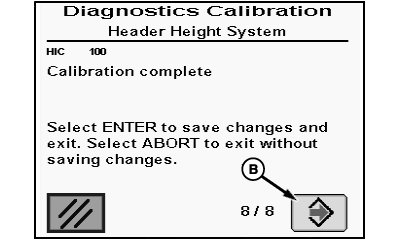

   N88504-UN-30APR10

   Calibration Complete Screen

   A - Enter Icon

   B - Enter Icon

   Highlight enter icon (A) on the start screen and press confirm button. Follow on-screen instructions to complete calibration.

---




9. When calibration complete screen appears, highlight enter icon (B) and press confirm button to save calibration results and exit.
