Changing Starting Fluid Cans

TS1356
TS1356-UN-18MAR92

N51050
N51050-UN-31AUG99

N96257
N96257-UN-20DEC11

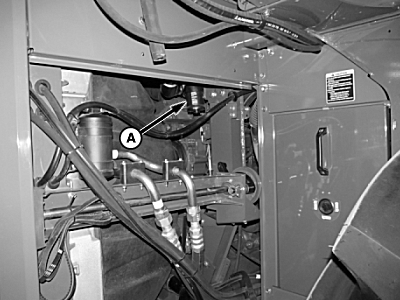

Starting Fluid Canister Location (Right-hand Side)

A - Canister

CAUTION: Starting fluid is highly flammable and can cause serious injury or death to you or others if it is accidentally ignited. DO NOT use near fire, sparks, or flames. Read the cautionary information on the container. Protect container against damage.

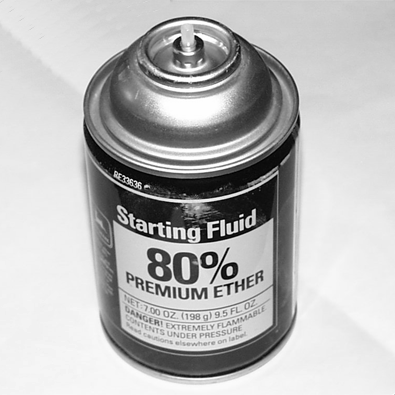

Pressurized cans of starting fluid are available from your John Deere dealer. Protect starting fluid can from damage or extreme heat.

IMPORTANT: To avoid drawing dust into engine, ALWAYS keep a starting fluid can in position or clean bottom of canister and install bottom side up.

  1. Remove front cover from cooling module on right-hand side of machine

  2. Remove safety cap and plastic nozzle from new starting fluid can.

  3. Remove canister (A) and install new can.

  4. Install canister and tighten.

DP99999,00007DE-19-20120113
