Priming Solution Pump

IMPORTANT: Damage to solution pump will occur if pump runs dry. If the fan must be run without solution in the tank, ALWAYS REMOVE pump drive belt. DO NOT allow pump to run dry.

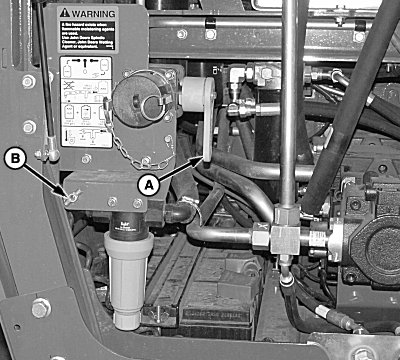

N96262
N96262-UN-21DEC11

A - Remote Fill Valve

B - Bleed Valve

  1. Ensure that solution tank contains at least 50 gallons of solution.

  2. Turn remote fill valve (A) to ON position.

  3. Open bleed valve (B).

  4. Close bleed valve after air is purged from pump.

DP99999,00007E1-19-20111221
