Cleaning Solution Strainer

N96263-UN-08FEB12

N96264-UN-21DEC11

N86479-UN-04SEP09

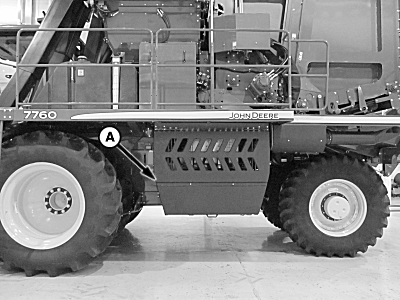

A - Power Module Door

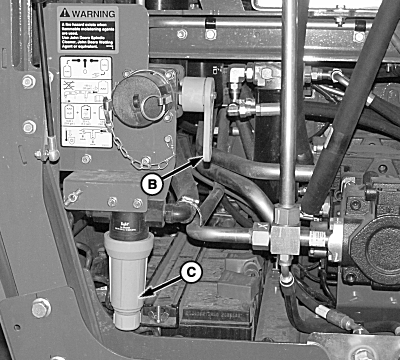

B - Remote Fill Valve

C - Strainer Bowl

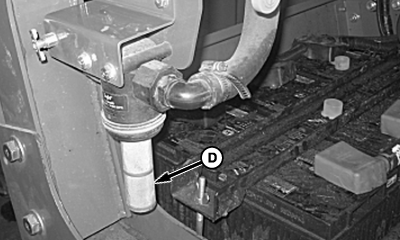

D - Strainer Screen

Recommended Service Interval
Clean Solution Strainer	Every 10 Hours

The solution strainer assembly is connected between the outlet side of the solution pump and the flush valve. Remove and clean 100 mesh strainer screen as follows:

1. Open power module door (A) to access strainer.

2. Turn handle on remote fill valve (B) to OFF position.

3. Firmly grasp strainer bowl (C) and turn counterclockwise to remove.

4. Remove and clean strainer screen (D) using clean water and soft bristle brush.

5. Install screen and bowl on strainer body.

6. Turn handle on fill valve to ON.
