Calibrating Row Units

1. NOTE: If any diagnostic trouble codes are present in the HIC control unit, unit drive system cannot be calibrated. Correct and clear codes before calibrating.


   N93042-UN-20JUN11

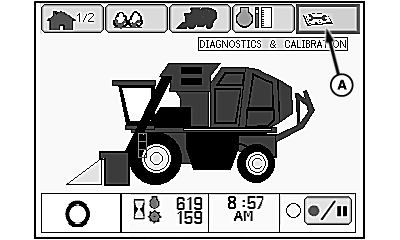

   Home Screen


   N87833-UN-26FEB10

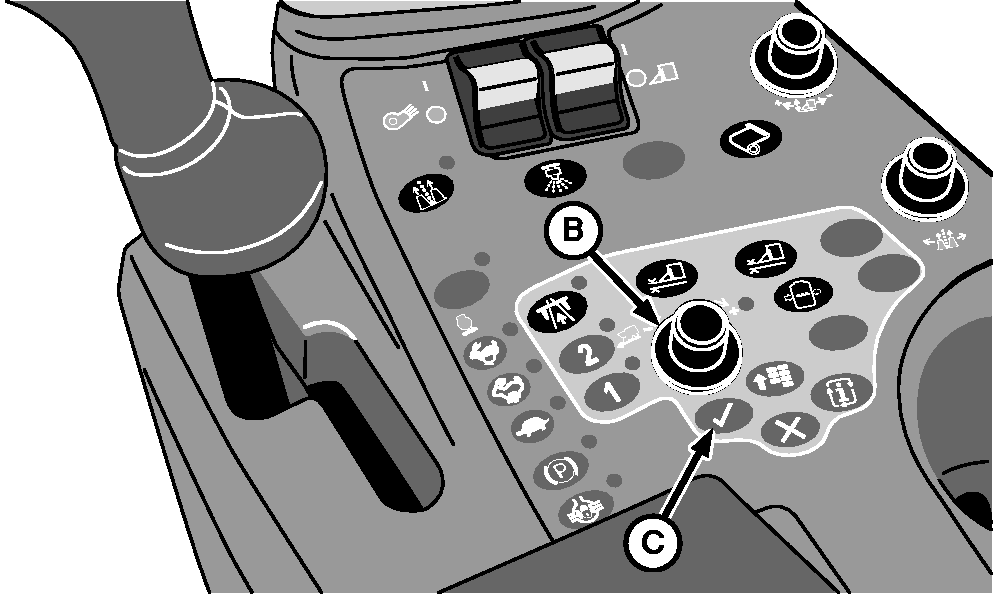

   Control Console


   N95846-UN-16DEC11

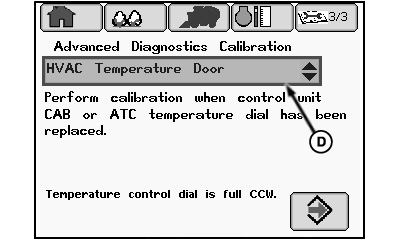

   Calibration Main Screen


   N95854-UN-20DEC11

   Calibration Menu

   A - Diagnostics and Calibration Tab

   B - Selection Dial

   C - Confirm Button

   D - Drop-down Box

   E - Unit Drive System

   Position cotton picker on a level concrete surface.

---




2. NOTE: Hydraulic system oil temperature must be approximately 50 °C (120 °F) before beginning calibration.

   Start engine and run at slow idle until hydraulic oil temperature is approximately 50 °C (120 °F).

3. Raise and lower row units several times to warm up components, then fully lower all units.

4. Highlight diagnostics and calibration tab (A) on home screen using selection dial (B).

5. Press confirm button (C) three times to access calibration main screen.

6. Highlight calibration procedures drop-down box (D) and press confirm button. A drop-down calibration menu appears.

7. Highlight unit drive system (E) and press confirm button. The row unit system calibration entry screen appears.

8.
   N95855-UN-20DEC11

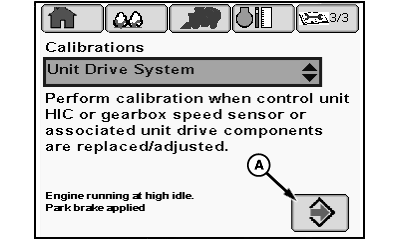

   Calibration Start Screen


   N88505-UN-30APR10

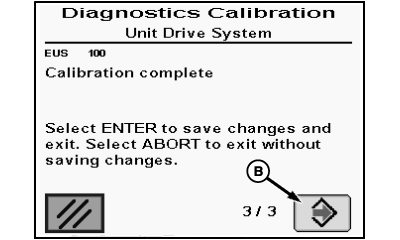

   Calibration Complete Screen

   A - Enter Icon

   B - Enter Icon

   Highlight enter icon (A) on the start screen and press confirm button. Follow on-screen instructions to complete calibration.

---




9. When calibration complete screen appears, highlight enter icon (B) and press confirm button to save calibration results and exit.
