Bleeding Grease Pump

N96271
N96271-UN-05JAN12

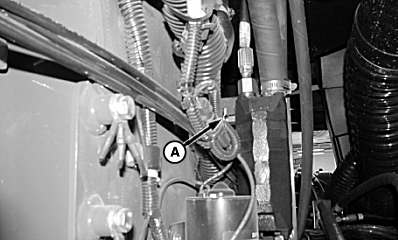

A - Grease Pump Bleed Valve

If chime sounds and row units are not receiving lubricant, bleed grease pump located on left inboard side of mainframe.

Bleed grease pump as follows:

  1. Open grease pump bleed valve (A).

  2. Operate lubrication system. Verify that grease is coming out of bleed valve. (If grease is not dispersed from bleed valve, see LUBRICATION SYSTEM in Troubleshooting section.)

  3. Close bleed valve.

DP99999,00007ED-19-20120105
