Main Frame and Platform

1. NOTE: Module builder latches (A) are difficult to release if cotton builds up on main frame around latches and release pedal.


   N96275-UN-06JAN12


   N80473-UN-11APR08

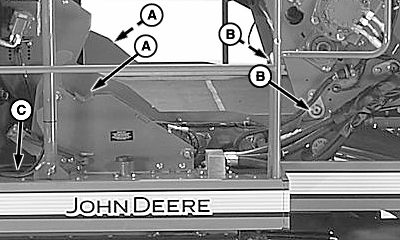

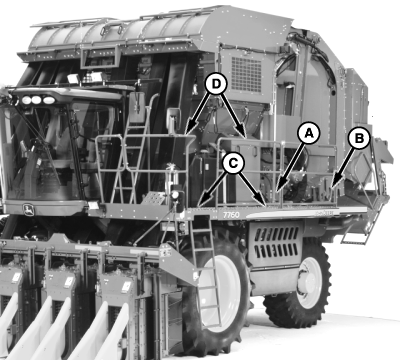

   A - Module Builder Frame Latches

   B - Module Builder Frame Pivots

   C - Platform

   D - Handrails

   Check module builder frame latches (A) and frame pivots (B) for cotton buildup or wear. Clean or repair as necessary.

---




2. Inspect platform (C) and handrails (D) for cotton buildup or damage. Clean or repair as necessary.
