Replacing Front Warning Light Bulbs

N96278
N96278-UN-06JAN12

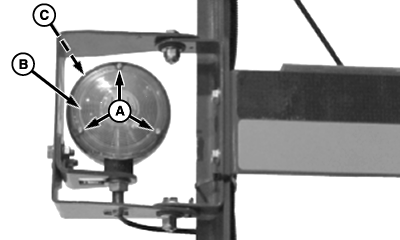

A - Screws

B - Lens

C - Gasket


  1. Remove screws (A).

  2. Remove lens (B) and gasket (C).

  3. Replace bulb. (See BULB PART NUMBERS in this section for proper replacement.)

  4. Install gasket and lens and retain with screws.

DP99999,00007F2-19-20120106
