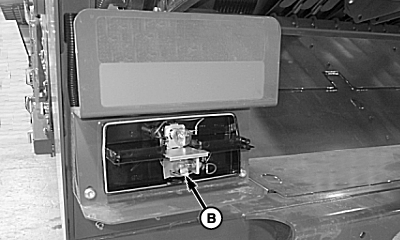

Replacing Tail and Stop Light Bulbs

N96739-UN-30JAN12

N96740-UN-30JAN12

A - Screw (2 used)

B - Bulb

1. Remove screws (A) and cover.

2. Remove bulb (B) from socket and replace. (See Bulb Part Numbers in this section for proper replacement.)

3. Install cover.
