Replacing Rear Turn Signal and Warning Light Bulbs

N96739
N96739-UN-30JAN12

N96741
N96741-UN-30JAN12

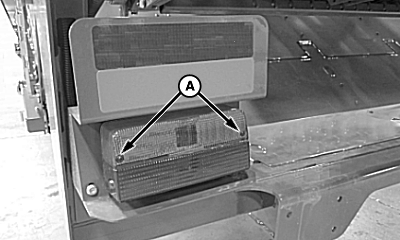

A - Screw (2 used)

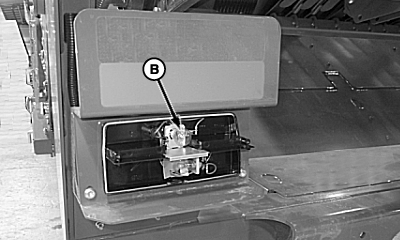

B - Bulb

  1. Remove screws (A) and cover.

  2. Remove bulb (B) from socket and replace. (See Bulb Part Numbers in this section for proper replacement.)

  3. Install cover.

DP99999,00007F5-19-20120201
