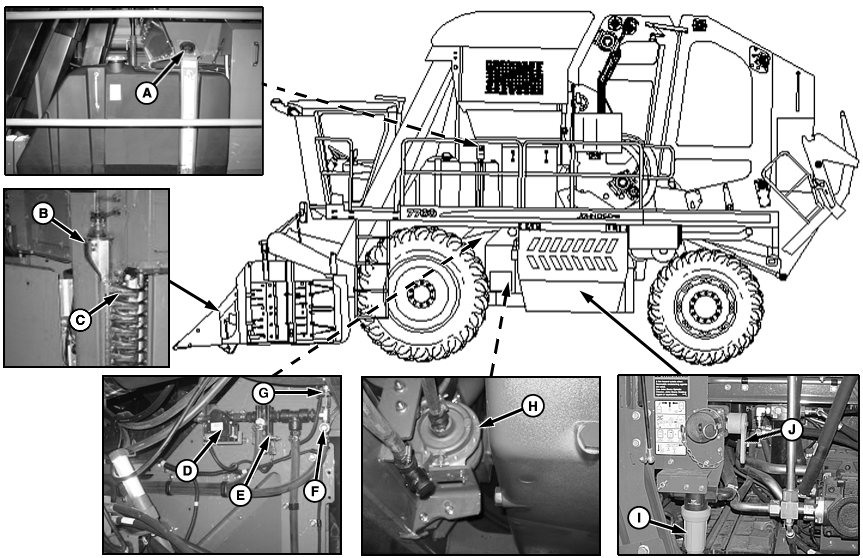

Moistener System Component Location

N96256-UN-13JAN12

A - Filler Cap

B - Distributor

C - Moistener Pads

D - Regulator (Located on right-hand side of frame near cotton fan outlet)

E - Flush Valve

F - Check Valve

G - Pressure Sensor

H - Solution Pump (Located on front side of engine between engine oil pan and power module)

I - Strainer

J - Remote Fill Valve
