Every Wrap Change

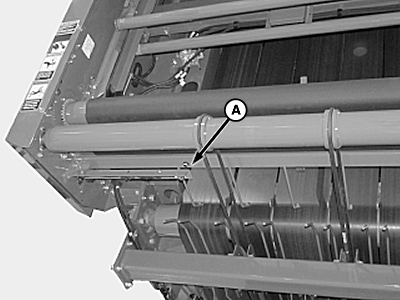

N96612-UN-19JAN12

A - Sensor

1. Clean cotton buildup or trash from wrap separation sensor (A) area.

2.

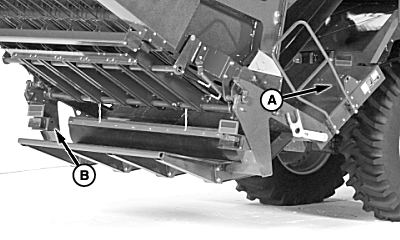

   N96614-UN-19JAN12

   A - Front Module Detection Sensor (2 used)

   B - Rear Module Detection Sensor (2 used)

   Clean cotton buildup or trash from front module detection sensors (A) and rear module detection sensors (B) on handler.

---




3.

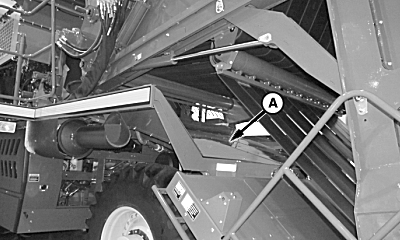

   N96613-UN-19JAN12

   A - Ramp

   Clean cotton buildup or trash from round module ramp area.

---
