Every 6 Hours of Operation

1. CAUTION: Falling from machine can cause serious injury or death. Always raise handrails and use extreme caution when climbing and working on accumulator hood.


   N96912-UN-11FEB12


   N96913-UN-11FEB12

   A - Handrail (2 used)

   B - Finger Grate (6 used)

   C - Screen (3 used)

   D - Cable

   Shut off engine.

---

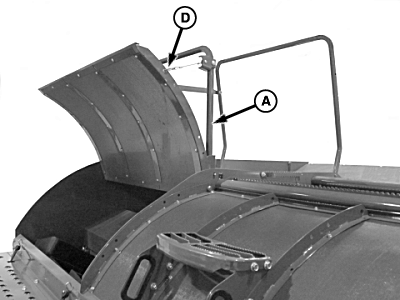

2. Raise handrails (A).

3. IMPORTANT: When cleaning, do not let debris fall onto cooling module and engine air intake area.

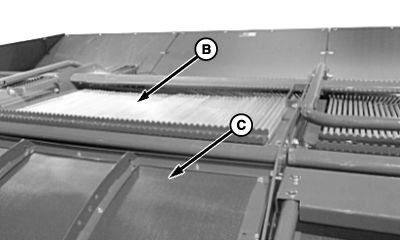

   Clean and inspect finger grates (B) and screens (C). Look for missing or damaged fingers on grates.

4. If screens must be raised, attach cable (D) from handrail to screen to prevent screen from falling.

5.
   N76271-UN-10MAY07

   Upper Belt Guides


   N76272-UN-19MAY08

   Lower Belt Guides

   A - Upper Belt Guides

   B - Lower Belt Guides

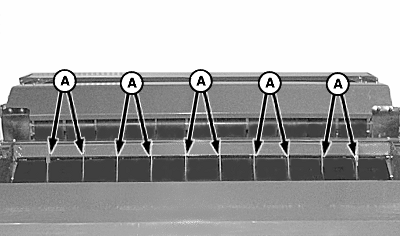

   Check upper belt guides (A) between front of module builder and accumulator for cotton buildup or wear.

---

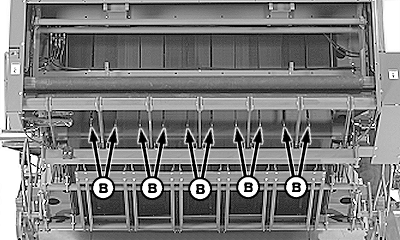

6. Check lower belt guides (B) at rear of module builder for cotton buildup or wear.

7.
   N55907-UN-18JAN01

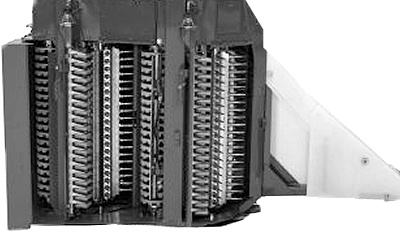

   Clean around doffers, moistener columns, drums, and picker bars in row units. Clean inside of suction doors and bottom of cabinets.

---




8.
   N76270-UN-09MAY07

   A - Nozzle

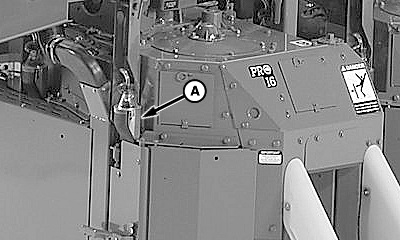

   Check solution nozzles (A) for dirt. Clean as needed.

---




9.
   N96529-UN-16JAN12

   A - Trash Expeller

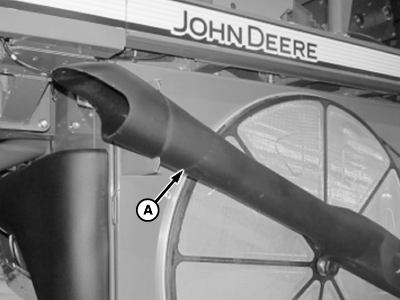

   Inspect and clean trash expeller (A) on rotary screen.

---




10.
    N96536-UN-18JAN12

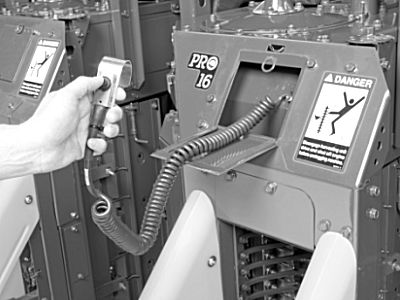

    Lubricate row unit picker bars, sun gears, upper gear train, and cam tracks using onboard lubrication system. (See OPERATING ONBOARD LUBRICATION SYSTEM in the Onboard Lubrication System section for details.)

---
