Check Lubricant Level in Lubrication Reservoir

N96272-UN-09JAN12

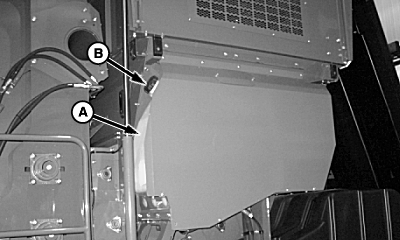

A - Lubrication Reservoir

B - Filler Cap and Dipstick

The lubrication reservoir (A) is located on the right-hand side of the machine beside the accumulator.

Remove filler cap and dipstick (B) and check level of lubricant in tank. Fill reservoir as necessary. (See FILLING LUBRICATION RESERVOIR in Onboard Lubrication System section.)
