Preparing Machine for Storage

If machine will not be operated for 30 days or more:

1. Clean machine thoroughly inside and out to prevent rust.

2. Clean spindles.

3. IMPORTANT: Lubricate row units thoroughly after washing to protect against corrosion.

   Do not direct high pressure spray at gearcase seals or gearcase vents.

   Wash row units thoroughly, inside and outside. Make sure they are thoroughly dry. Spray entire picking mechanism with a rust-preventive oil.

4. Lubricate machine completely. Grease threads on bolts used for adjustments. Run row units until all parts are thoroughly lubricated.

5. IMPORTANT: Solution pump damage can occur if pump is operated without water in system.

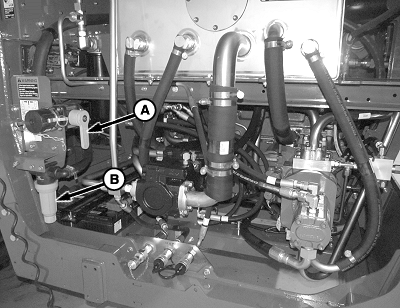

   N96647-UN-26JAN12

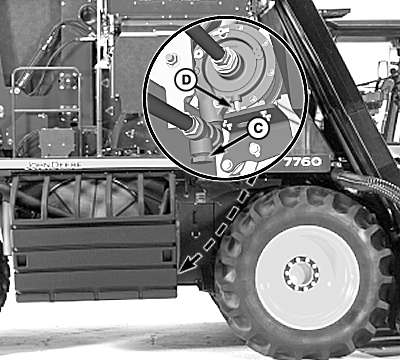

   N96646-UN-26JAN12

   A - Valve

   B - Strainer

   C - Drain Plug

   D - Pump Drain Valve

   Drain and refill moistener system:

   1. Close valve (A).

   2. Remove drain plug (C) and open pump drain valve (D).

   3. Open valve (A) and allow system to drain.

   4. Remove strainer (B) to drain water from valve area.

   5. Install strainer and drain plug. Close pump drain valve.

   6. Mix RV environmentally safe antifreeze to protect moistener system at lowest expected temperatures. Mix according to manufacturer's directions.

   7. Pour appropriate mixture of RV antifreeze into moistener system tank. Operate system to circulate antifreeze through lines and nozzles.

---




6. Repaint where necessary.

7. Support row units with blocks.

8. Block machine to take load off tires. Do not deflate tires. If machine is stored outside, remove wheels and tires and store them in a cool, dark place. Do not store tires in contact with blacktop or other oil stabilized surfaces.

9. Loosen all belts.

10. Clean oil cooler.

11. Order repair parts for next season.
