Positioning Machine for Harvest

1.
   N87838-UN-26FEB10


   N87842-UN-12MAR10

   Mode Management Screen


   N87845-UN-03MAR10

   Transport Mode Screen


   N96649-UN-08FEB12

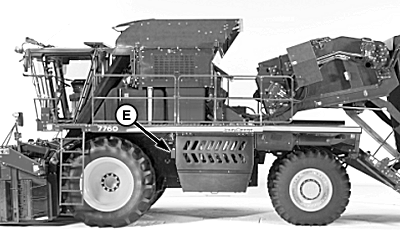

   Tether Control Location

   A - Mode Select Button

   B - Transport Mode Icon

   C - Selection Dial

   D - Confirm Button

   E - Tether Control

   Press mode select button (A). Mode management screen appears on armrest display unit (ADU).

---




2. Highlight transport mode icon (B) using selection dial (C).

3. Press confirm button (D). Transport mode screen appears on ADU.

4. Remove tether control (E) from storage bracket on front side of power module.

5. NOTE: Short delays in machine motion is normal, continue to hold button C until machine is fully configured in harvest mode.

   Press and hold button C on tether control to place machine in harvest mode.

6. Return tether control to storage bracket.
