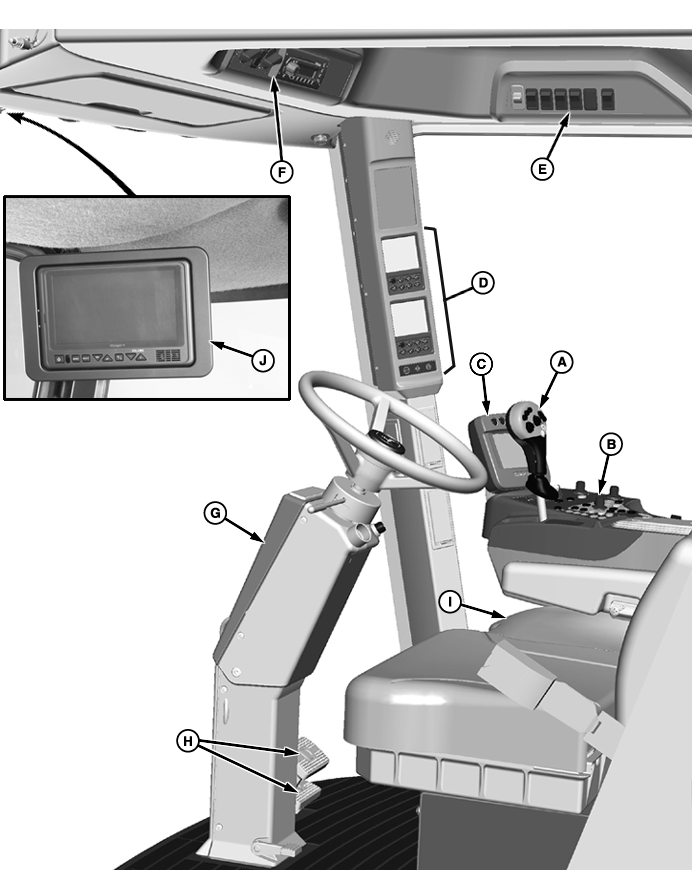

General View of Controls and Indicators

N96874-UN-06FEB12

A - Multifunction Control Handle

B - Armrest Control Console

C - Armrest Display Unit (ADU)

D - Corner Post Display and Indicators

E - Lighting Control Panel

F - Heater, Air Conditioner, and Radio Control Panel

G - Steering Column

H - Brake Pedals

I - Operator's Seat

J - Rear Camera Video Monitor
