Unit Lift Frame

N96910-UN-09FEB12

N75900-UN-26APR07

A - Unit Lift Area

B - Unit Lift Frame

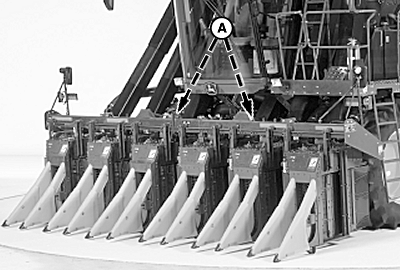

1. Inspect unit lift areas (A) for cotton buildup, loose hoses, air ducts and other obstructions. Clean or repair as necessary to prevent damage.

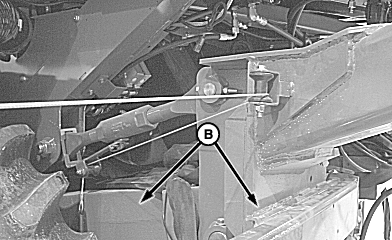

2. Inspect unit lift frame areas (B). Clean or repair as necessary.
