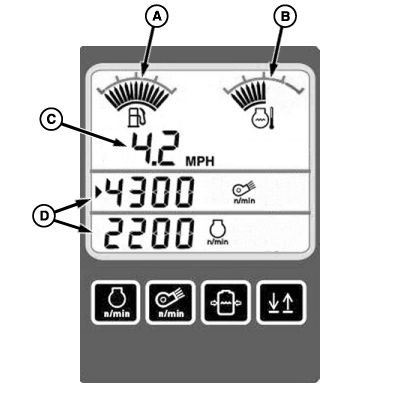

Vehicle Monitor Display

N96918-UN-15FEB12

A - Fuel Level Gauge

B - Coolant Temperature Gauge

C - Vehicle Ground Speed Display

D - Tachometer Data Display

The vehicle monitor displays the following parameters:

• Fuel level gauge (A)
• Engine coolant temperature gauge (B)
• Vehicle ground speed display (C)
• Tachometer data display (D)
