Product Identification and Component Serial Numbers

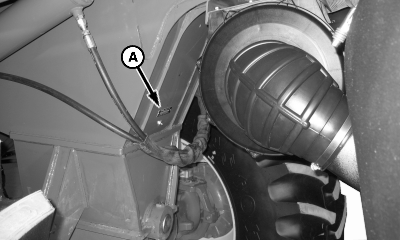

N75340
N75340-UN-07MAR07

A - Product Identification Number

Machine product identification number (A) is on the inside rear of mainframe. Record it in the space provided.

Identification Number _________________________

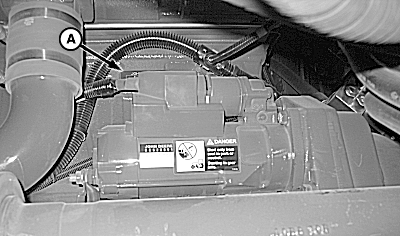

N75317
N75317-UN-08MAR07

A - Engine Serial Number

Engine serial number (A) is on the side of the engine block, located behind the starter. Record it below.

Engine Serial Number _________________________

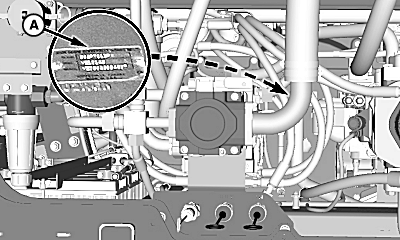

N83994
N83994-UN-08APR09

A - Pump Drive Gearbox Serial Number

Pump drive gear case serial number is located on front side of gear case, above sight glass.

Pump Drive Gearbox Serial Number _________________________

The unit drive hydrostatic motor serial number is located on top of the motor. Record it below.

Motor Serial Number __________________________

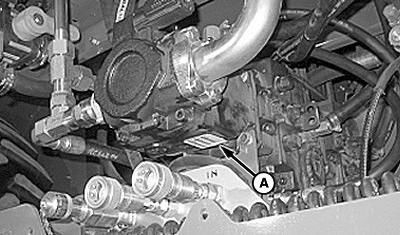

N75334
N75334-UN-23MAR07

The unit/auxiliary pump stack serial number (A) is on front, bottom side of pump.

Unit/auxiliary Pump Stack Serial Number _____________________________

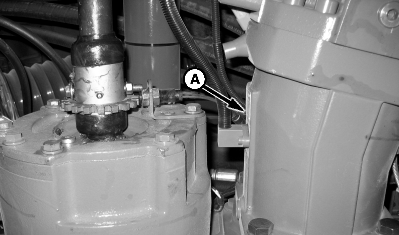

N75397
N75397-UN-09MAR07

View From Below Machine

A - Propel Hydrostatic Motor Serial Number

The front propel hydrostatic motor serial number (A) is located on the front side of the propel motor.

Front Propel Motor Serial Number ____________________________

Rear Propel Motor Serial Number ____________________________

Propel Pump Serial Number ____________________________

Unit Drive Motors 1 and 2 Serial Number ____________________________

N75335
N75335-UN-07MAR07

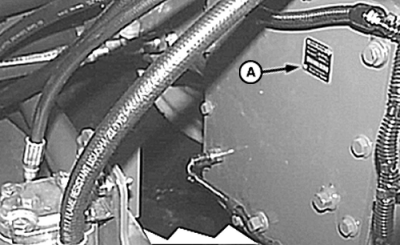

A - Transmission Serial Number

The transmission serial number (A) is located on the rear side of the transmission case.

Transmission Serial Number ____________________________

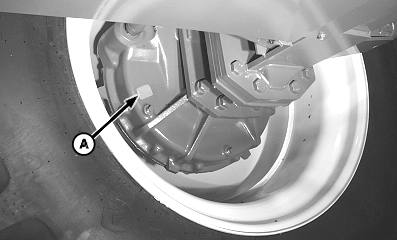

N59454
N59454-UN-14FEB02

A - Final Drive Serial Number

The final drive serial number (A) is located above drain plug on final drive case.

Left-Hand Final Drive Serial Number ____________________________

Right-Hand Final Drive Serial Number ____________________________

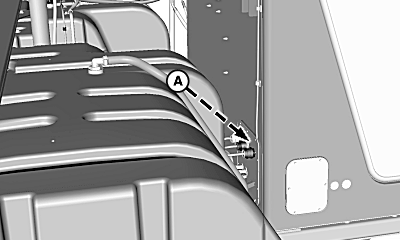

N84046
N84046-UN-08APR09

Behind Access Panel

N84045
N84045-UN-08APR09

Controller Serial Number

A - Cab Serial Number Location

Cab serial number (A) is on the right-hand lower rear cab corner. Record it below.

Cab Serial Number ___________________________

Controller serial numbers are located on the back of the housing. Record below or in the spaces provided.

Engine Controller (In Power Module) Serial Number ________________________

Vehicle Controller (In Power Module) Serial Number ________________________

ROW-TRAK Controller (Optional) Serial Number ________________________

DP99999,0000844-19-20120220
