Operator Presence System
CAUTION: If the operator presence system fails to function correctly,
the machine can stop or move unexpectedly causing serious injury or
death to you or others. If the system fails to operate exactly as
described, see your John Deere dealer.

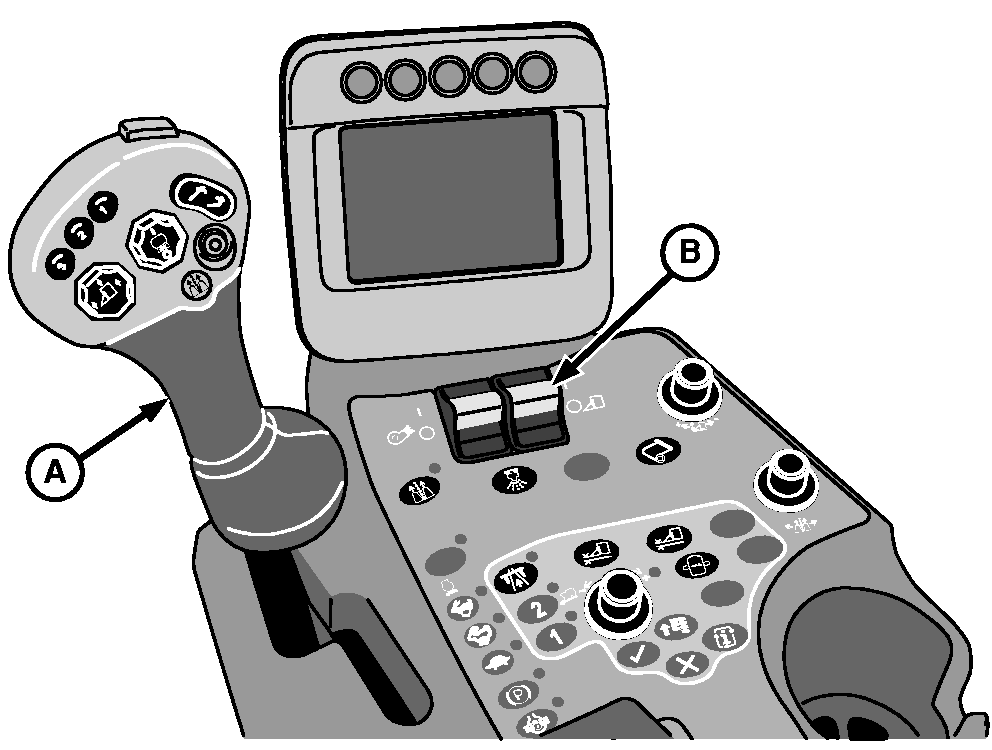

N97237-UN-27FEB12
A - Multifunction Control Handle
B - Row Units Switch
To enhance operator safety, this machine is equipped with a passive operator presence system. The system senses the presence of the operator in the seat whenever row units are engaged or machine is moving.If the operator leaves the seat for more than 5 seconds, the operator presence system immediately stops the machine and the row units (if engaged). The engine continues to run.
To resume operation, the operator must return to the seat and momentarily move multifunction control handle (A) to the neutral position.
To restart row units, row units switch (B) must be moved to OFF position and back to ON.
|
DP99999,000084B-19-20120227 |
