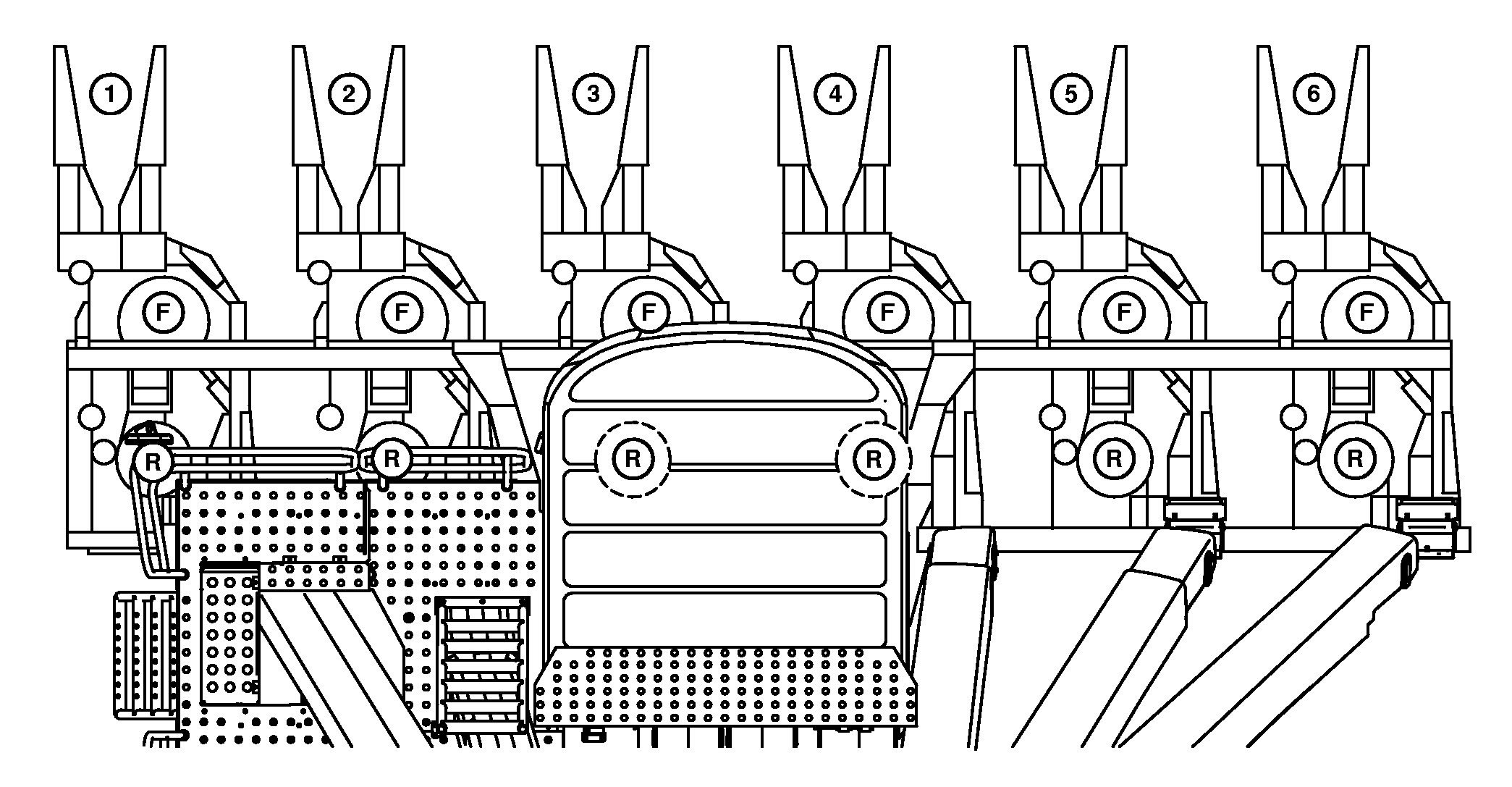

Row Unit and Drum Identification

N80727
N80727-UN-08MAY08

1-6 - Row Units

F - Front Drum

R - Rear Drum

Row units are numbered 1 through 6 from left-hand side of driver's station facing in direction of travel.

Picker drums are identified by "F" for front drum and "R" for rear drum.

OUO1078,000001B-19-20080606
