Machine Dimensions

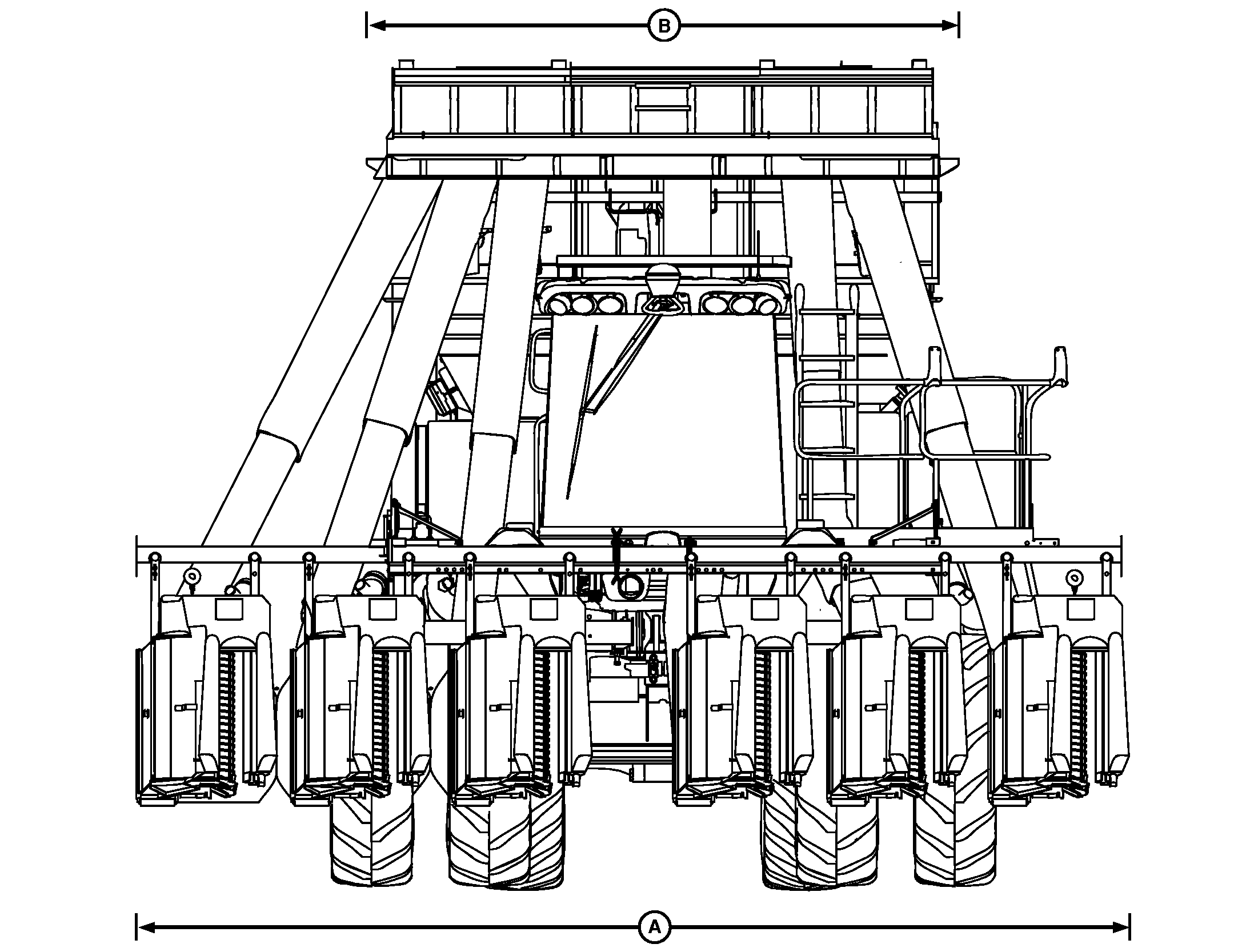

N84363-UN-17APR09

Front View (Harvest Mode)

A - 5537 mm (218 in.)

B - 3658 mm (144 in.)

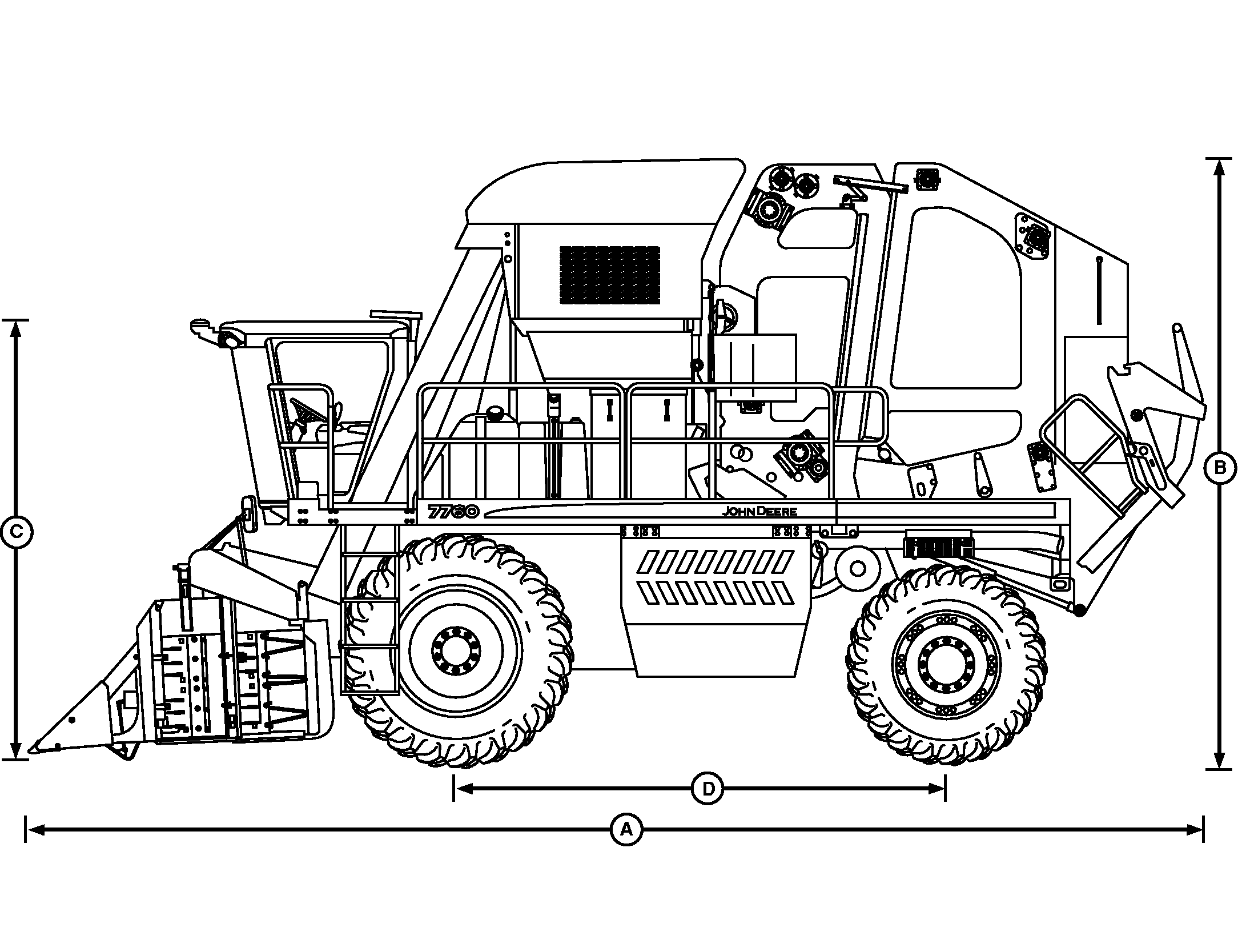

N84364-UN-17APR09

Side View (Harvest Mode)

A - 10,135 mm (399 in.)

B - 5245 mm (206.5 in.)

C - 3810 mm (150 in.)

D - 4318 mm (170 in.)

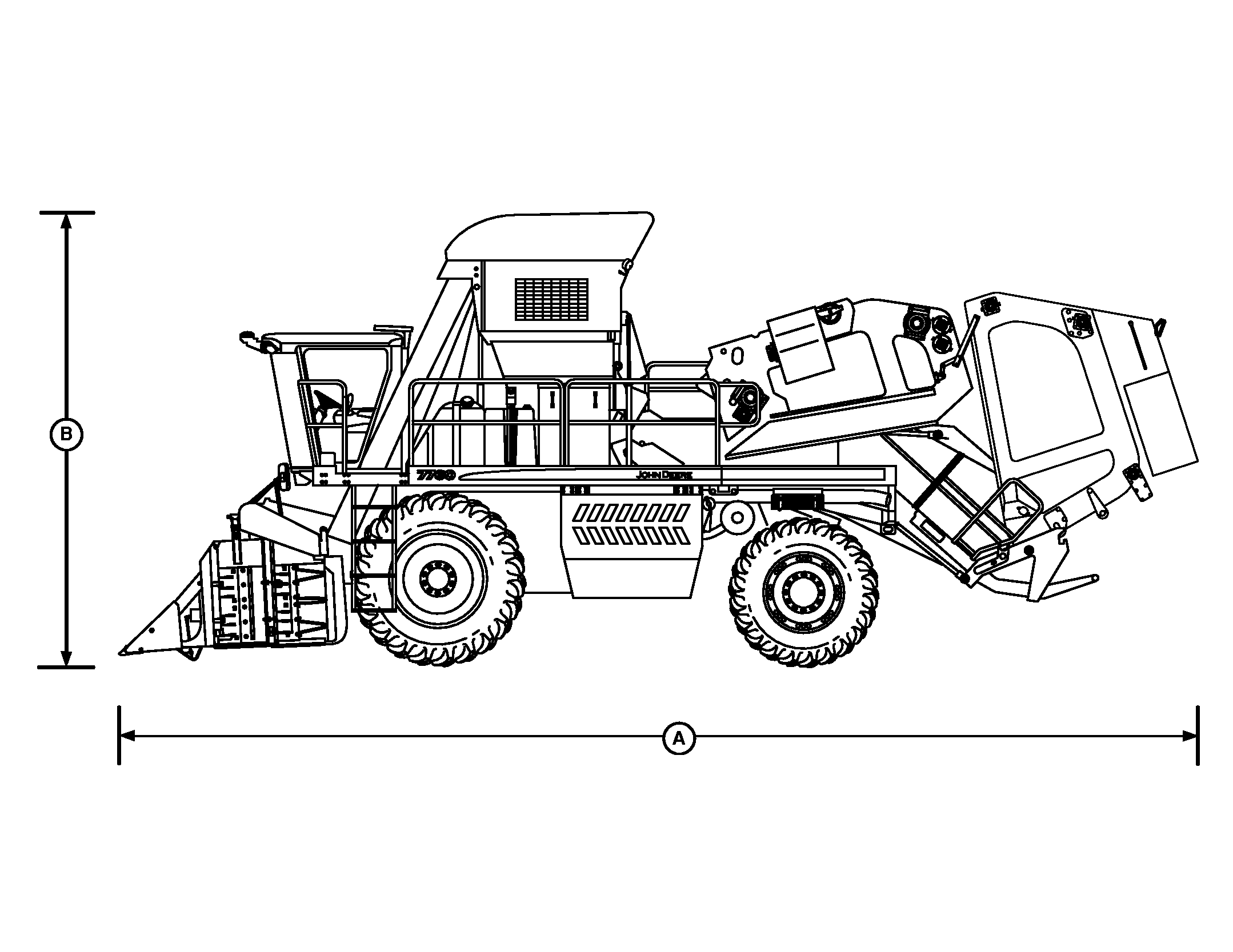

N84382-UN-17APR09

Side View (Transport Mode)

A - 11,938 mm (470 in.)

B - 4356 mm (171.5 in.)
