Travel Brake Pedals

N72301-UN-30MAR06

A - Brake Pedals

B - Brake Latch

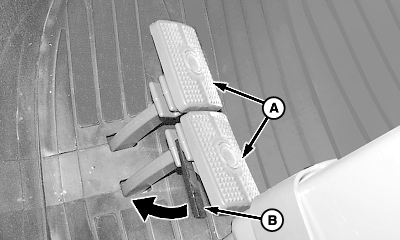

Brake pedals (A) may be used individually to assist in low-speed turning by placing brake latch (B) to the left-hand, unlatched position as shown. Depress brake pedal that corresponds with the direction of the turn.

CAUTION: To avoid injury or death to you or others from loss of machine control during transport, verify travel brake pedals are latched together before road transport.

When machine is to be driven at high speed or when brakes are not needed to assist in low speed turning, latch brake pedals together by placing brake latch (B) into groove of right-hand brake pedal.
