Right-Hand Armrest and Control Console Adjustment (Slide Adjust System)

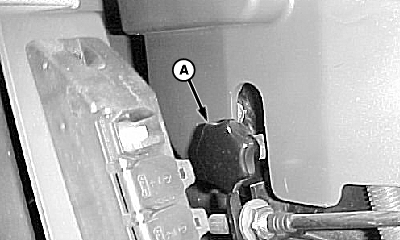

H78811-UN-30OCT03

A - Knob

A single control allows the operator to adjust the right-hand armrest control console.

To adjust right-hand armrest control console, loosen knob and slide armrest up/forward or down/back in slots on outer plate and tighten knob to lock armrest in place.
