Adjust Stationary Knife

1. CAUTION:


   N64691-UN-15DEC03

   To avoid serious injury, always wear gloves when handling knives.


   N64401-UN-11NOV03

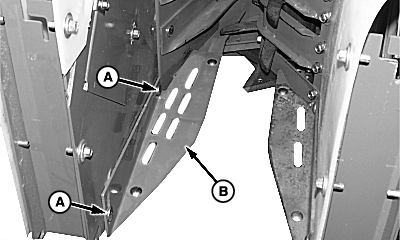

   A - Carriage Bolt

   B - Guide

   Remove carriage bolts (A) and guide (B).

---




2.
   N64403-UN-11NOV03

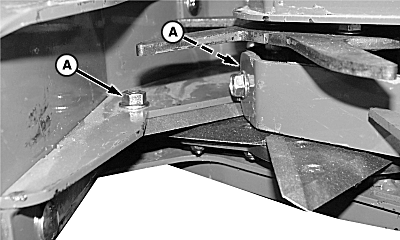

   A - Nut

   Loosen nuts (A).

---




3. NOTE:


   N64402-UN-04NOV03


   N64608-UN-02DEC03

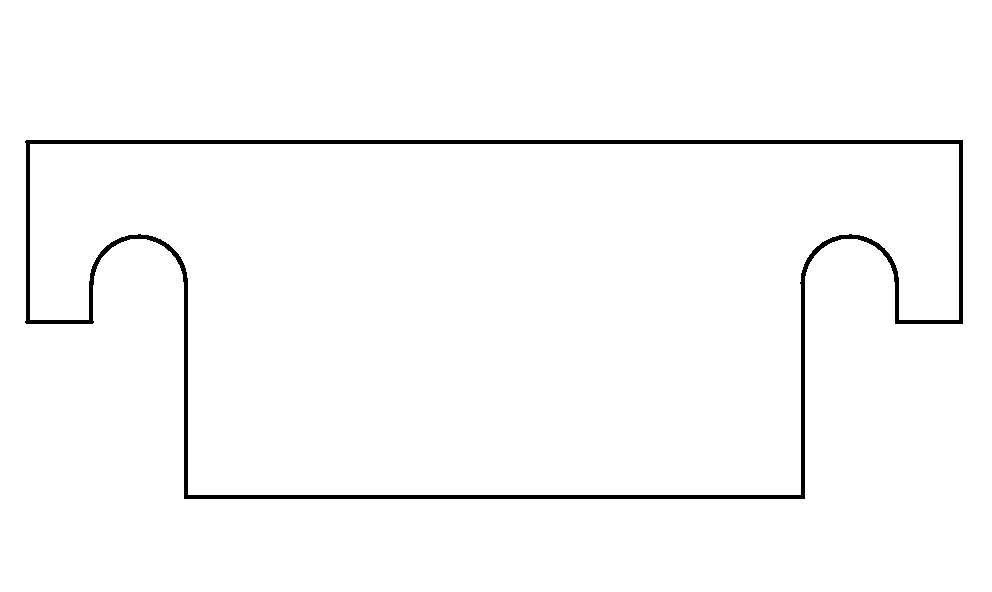

   Stationary Knife Full Shim, 0.25 mm (0.010 in.)

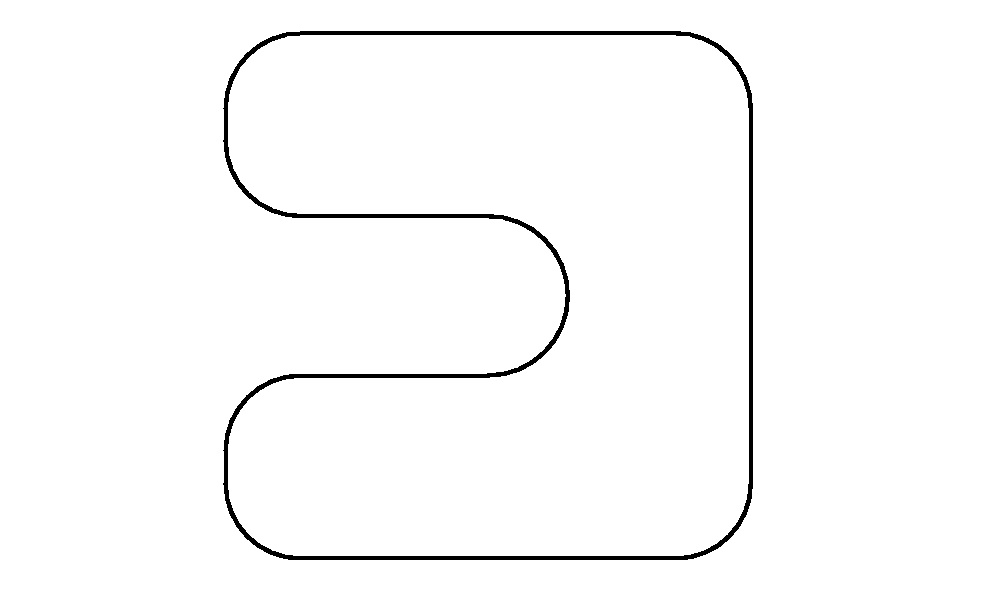

   N64609-UN-02DEC03

   Stationary Knife Half Shim, 0.25 mm (0.010 in.)

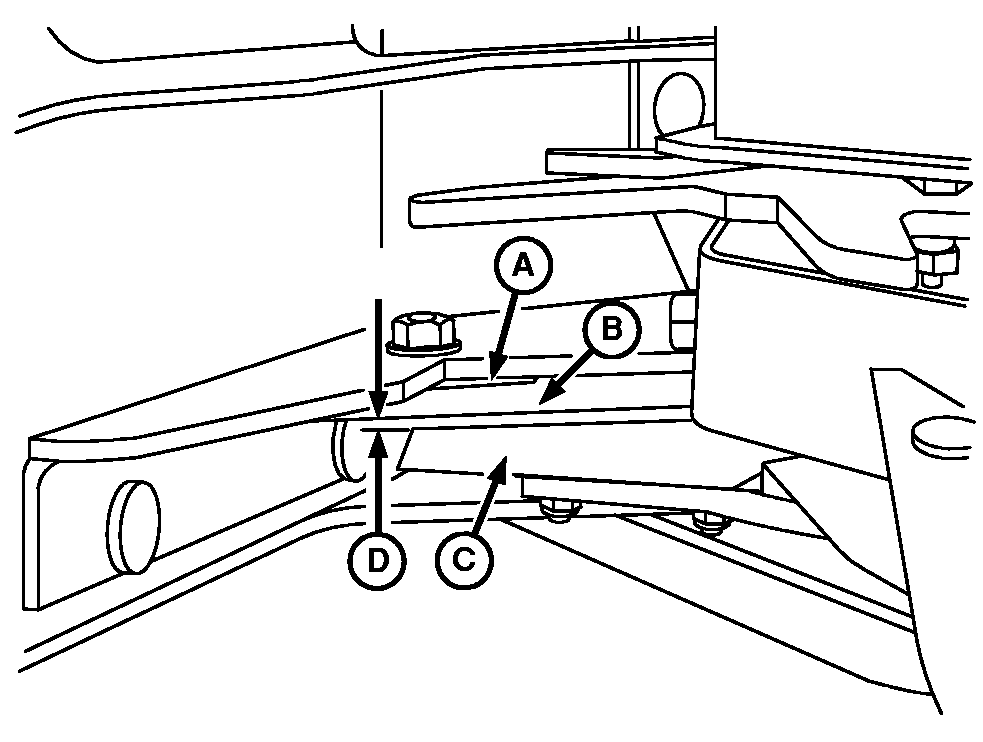

   A - Shim

   B - Stationary Knife

   C - Rotary Knife

   D - Clearance

   Clearance (D) must be same across length of stationary knife and rotary knife. Use half shim if clearance is not same from one end of stationary knife to opposite end.

   Add shim(s) (A) to achieve clearance between stationary knife (B) and rotary knife (C). Clearance (D) must be within specification.

   Item	Measurement	Specification
   Stationary Knife Blade-to-Rotary Knife	Clearance	0.127—0.762 mm (0.005—0.030 in.)

---




4. Tighten nuts (A). Check clearance. If clearance is not within specification, repeat previous step.

   NOTE: Alternate method is to loosen bolts in knife floor and lower floor.

5.
   N64401-UN-11NOV03

   A - Carriage Bolt

   B - Guide

   Install guide (B) using carriage bolts (A).

---
