Remove and Replace Rotary Knife Sections

1. CAUTION:


   N64691-UN-15DEC03

   To avoid personal injury, always wear gloves when handling knives.


   N64497-UN-14NOV03


   N64498-UN-14NOV03

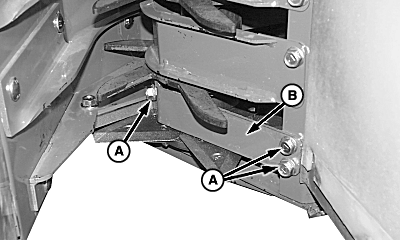

   A - Flange Head Cap Screw

   B - Guard

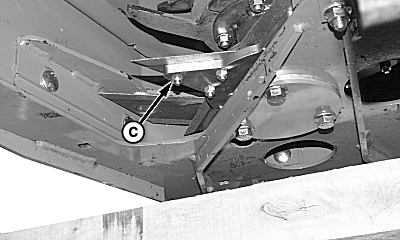

   C - Lock Nut and Cap Screw (3 used)

   Remove flange head cap screws (A) and guard (B).

---




2. Remove lock nuts and cap screws (C) and knife section.

3. Install new knife section in reverse order as removed.

4. Tighten lock nut (C) to specification.

   Item	Measurement	Specification
   Lock Nut	Torque	12 N˙m (102 lb-in.)
