Assemble Lubrication Transfer Pump

NOTE: Check Valve (J) must be installed in return line (“out” port (O) on pump) as shown, or oil will not flow through pump.

N70185-UN-19MAY05

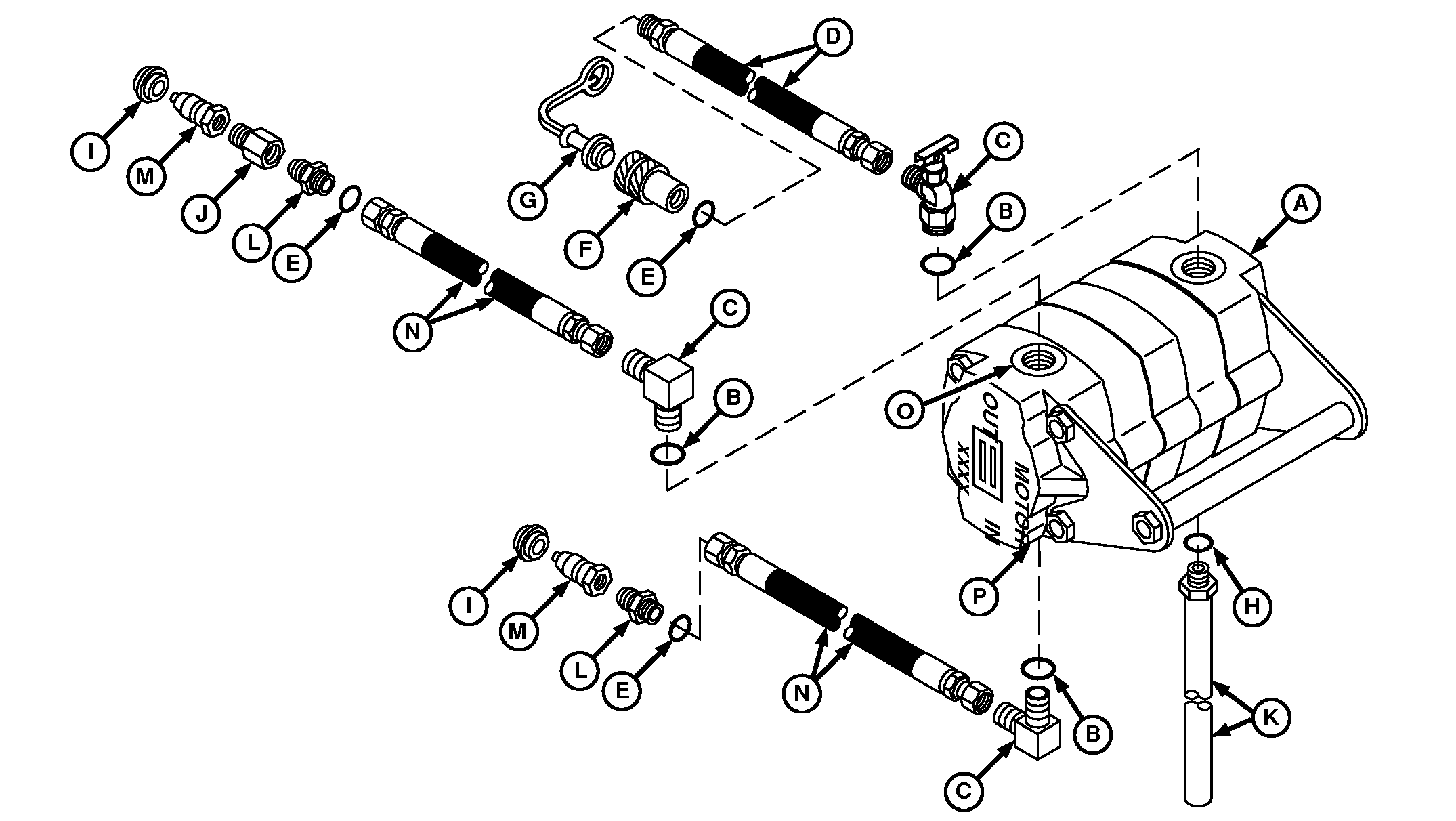

A - Pump

B - O-Ring, 19.18 x 2.46 mm

C - Elbow Fitting

D - Hydraulic Hose

E - O-Ring, 16.36 x 2.2 mm

F - Hydraulic Quick-Connect Coupler

G - Cap

H - O-Ring, 29.74 x 2.95 mm

I - Cap

J - Check Valve

K - Suction Tube

L - Connector

M - Internal Half Coupler

N - Hydraulic Hose

O - Hydraulic Oil “Out” Port

P - Hydraulic Oil “In” Port

Remove and identify all parts from bundle.

Assemble pump, suction tube and hoses using diagram.
