Every 200 Hours of Operation

1. NOTE: When replacing filter, it should drop easily into place. Do not force it. Verify that filter is installed with arrows towards front of machine as shown.

   If operating in dusty conditions, primary (recirculating) filter should be cleaned daily.


   N56520-UN-19MAR01


   N75153-UN-03APR07

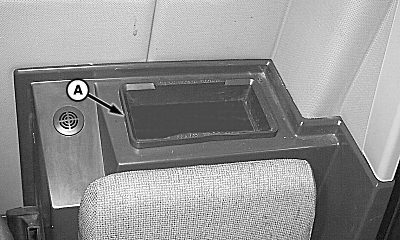

   A - Tray

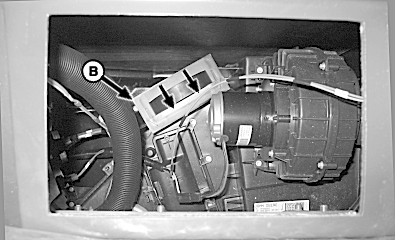

   B - Filter

   Lift out tray (A). Reach in opening and pull filter (B) out.

---




2. Clean or replace filter as necessary. (See CLEANING CAB FILTERS in Cab and Air Conditioning section for instructions to clean filter.)
