Final Drive and Powered Rear Axle Lubricant

X9322-19-30SEP88

IMPORTANT: Using gear lubricant with SCL additives can result in increased wear and damage to final drives. Do not use gear lubricant with SCL additives in final drives.

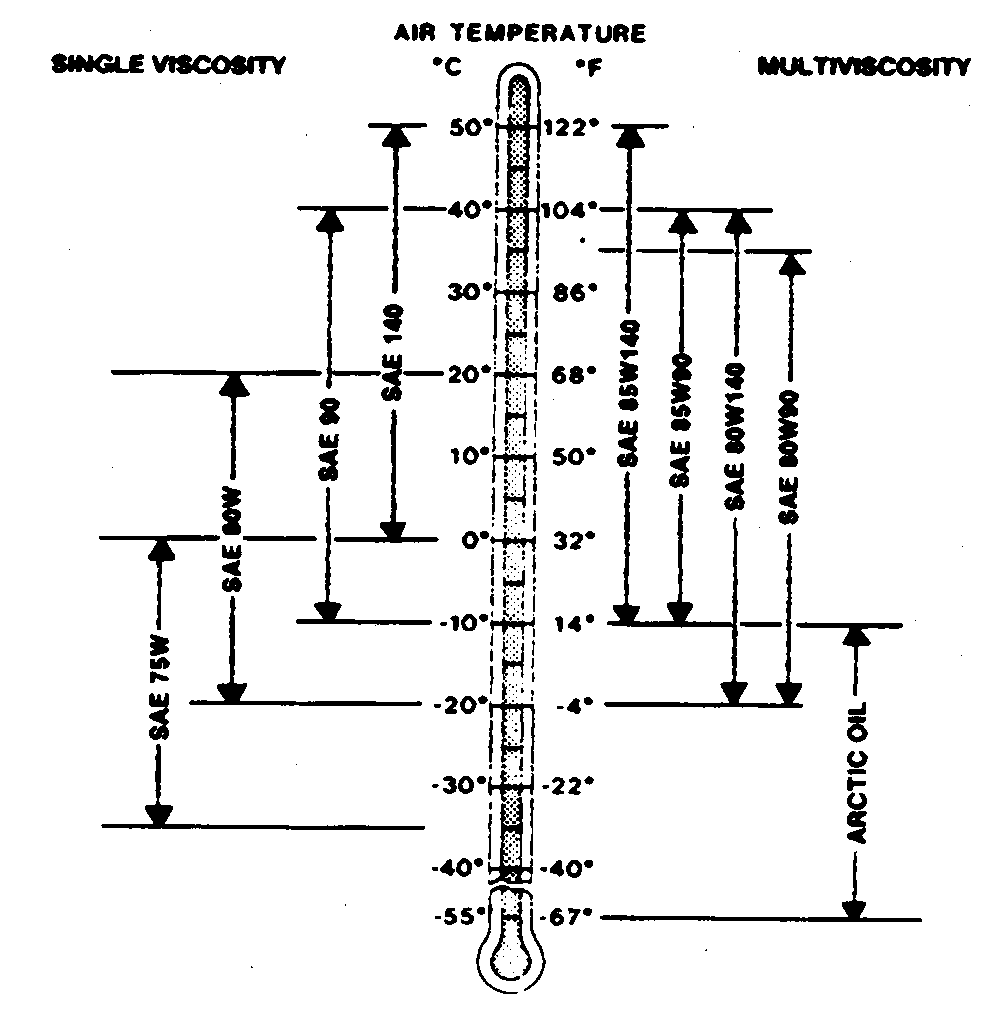

Depending upon the expected air temperature range during the drain interval, use oil viscosity shown on the adjoining temperature chart.

John Deere 85W/140 API GL-5 gear oil is recommended. If other oils are used, they must meet performance requirements of:

• API Service Classification GL-5
• Military Specification MIL-L-2105C
