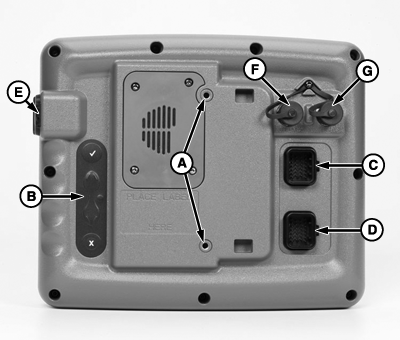

Back of Display

PC12702-UN-20JUL10

A - Display mounting holes

B - Secondary navigation

C - Primary Display connector

D - Video Connector

E - USB Connector

F - Ethernet Connector (Future Use)

G - USB Connector (Future Use)

Backside of Display contains:

• Display Mounting Holes—attach to bracket on machine
• Secondary Navigational Point—provides backup navigation with display
• Display Connector—connects vehicle wiring harness plugs with display for system power and communication
• Video connector—connects video source to display
• USB Connector—holds USB drive used for data collection and saving selected display and implement settings
• Ethernet Connector—With an adapter, an Ethernet cable can be used in the future
• USB Connector—With an adapter, a USB cable can be used in the future

NOTE: Backside of display will have label with display model and serial number on it.
