Operate Automatic Temperature Control — ClimaTrak (ATC)

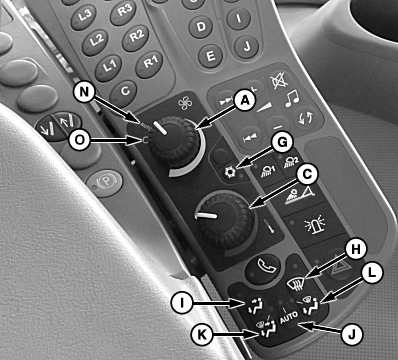

N102013-UN-11FEB13

CommandARM Controls

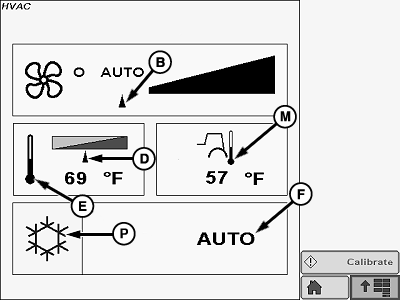

N102631-UN-01MAR13

A - Fan ON/OFF Control Knob

B - Fan Speed Indicator Arrow

C - Temperature Control Knob

D - Temperature Indicator Arrow

E - Set Point Temperature Display

F - HVAC Mode

G - Air Conditioner Control Button

H - Defrost

I - Cab And Floor Vent

J - ClimaTrak Enable (Auto)

K - Defrost, Floor Vent And Cab

L - Defrost And Floor Vent

M - Ambient Temperature

N - Auto

O - OFF

P - Air Conditioner Icon

Rotate Fan ON/OFF Control knob (A) to adjust fan speed. Fan speed indicator arrow (B) moves in relation to fan speed.

Turn Temperature Control Knob (C) to red zone for heating or blue zone for cooling. Temperature display (E) indicates current cab temperature. Ambient temperature (M) is displayed on the GS3 display.

The bottom portion of display (F) indicates which of several modes the heating and cooling unit is currently operating in. Pressing buttons (G through L) changes the display and operating mode. Selecting defrost or air flow options will automatically enable compressor. Listed below is each of those modes.

• Compressor Enable (G) enables the compressor which turns air conditioner on and off.
• Defrost (H) turns on defroster and directs air flow to windshield.
• Cab and Floor Vent (I) directs air flow at operator chest and feet simultaneously.
• ClimaTrak Enable, Auto (J) automatically adjust direction of air flow.
• Defrost and Cab (K) directs cab air temperature to operator and windshield simultaneously.
• Defrost and Floor Vent (L) directs cab air temperature to footwell and windshield simultaneously.
