Replace Open Crankcase Ventilation Filter (6.8 L Engine)—1500 Hours

  1. RXA0109394
    RXA0109394-UN-16AUG10

    N102349
    N102349-UN-11FEB13

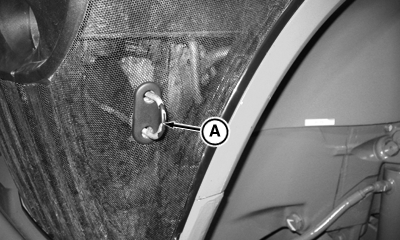

    A - Hood Release

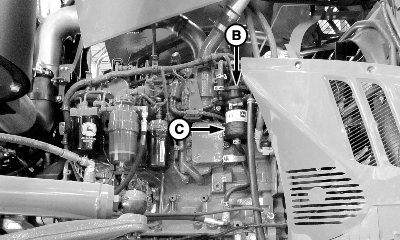

    B - Filter Lid

    C - Filter Housing

    Pull hood release (A) and raise hood.


  2. Remove filter lid (B).

  3. Remove open crankcase ventilation filter from inside filter housing (C).

  4. To install new filter, align tabs on new filter with tabs on inside of filter housing.

  5. Replace lid and hand tighten.

CS12167,0000292-19-20130624
