Replace Hydraulic Reservoir Fill Cap—500 Hours

  1. IMPORTANT: Fill cap contains hydraulic reservoir breather filter and should be replaced when hydraulic oil is changed.

    N102626
    N102626-UN-01MAR13

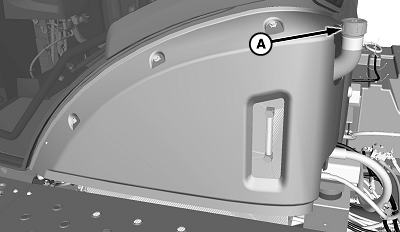

    A - Fill Cap

    Remove hydraulic reservoir fill cap (A). Compress tether chain ring to remove from neck flange.


  2. Wipe off dirt and oil from top of fill neck with clean rag.

  3. Compress new tether ring so it fits in neck, and place horizontally under neck flange.

  4. Insert chain in fill neck.

  5. Install cap.

CS12167,0000330-19-20130226
