Replace Open Crankcase Ventilation Filter (9.0 L Engine)—1500 Hours

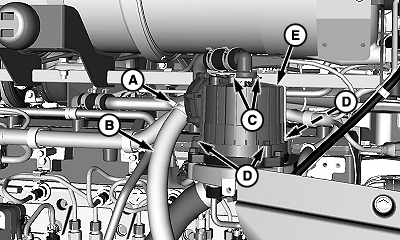

  1. N103038
    N103038-UN-10APR13

    A - Clamp

    B - Crankcase Vent Hose

    C - Screws

    D - Cap Screws

    E - Filter Cover

    Raise hood.


  2. Release clamp (A) and remove crankcase vent hose (B).

  3. Remove and retain screws (C).

  4. Remove cap screws (D) and filter cover (E).

  5. Remove and discard used filter.

  6. Install new filter and all previously removed parts.

CS12167,0000349-19-20130415
