Connect Front Fill — If Equipped

1.

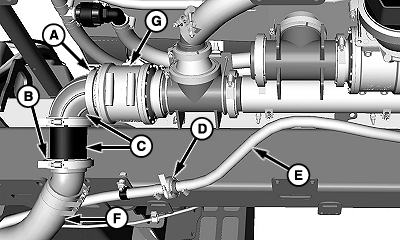

   N102739-UN-18MAR13

   A - Clamp

   B - Clamp

   C - Fittings

   D - Clamp

   E - Front Fill Purge Line

   F - Front Fill Hose

   G - Front Fill Isolation Valve

   Remove clamp, cap and gasket from front fill hose (F) and front fill isolation valve (G).

---




2. Install fittings (C) using clamps (A and B).

3. Remove caps from front fill purge line (E).

4. Connect front fill purge line using clamp (D).
