Fill Solution Tank with Target Fill—If Equipped

1. CAUTION: Read carefully the directions printed on the chemical manufacturer's labels before handling chemicals, exposure to hazardous materials could poison and injure you.

   IMPORTANT: Do not add chemical to tank until just before field use. Follow the chemical manufacturer's instructions for mixing the spray solution to obtain the desired application rate and effect.

   CAUTION: Quik-Fill valve (A) can contain hazardous materials which can poison causing serious injury or death to you or others. Before removing Quik-Fill cap (B), verify Quik-Fill valve is closed.


   N99947-UN-11JUL13

   Side Quik-Fill


   N103859-UN-30MAY13

   A - Quik-Fill Valve

   B - Cap

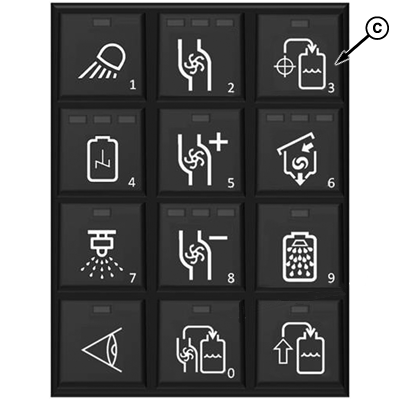

   C - Target Fill Button

   Verify Quik-Fill valve (A) is closed.

---




2. Open lock levers and remove cap (B).

3. Connect nurse tank fill hose to Quik-Fill adapter, close lock levers, and open nurse tank valve.

4. NOTE: Target fill level must be set using the GS3 display in cab prior to beginning fill procedure. (See Setup Target Fill in SprayStar section of this manual.)

   Open Quik-Fill valve, press target fill button (C).

5. After solution tank has filled to preset level, close nurse tank and Quik-Fill valves.

6. Remove fill hose from Quik-Fill adapter and replace cap.
