Clean AutoTrac™ Strainer—As Required

1.

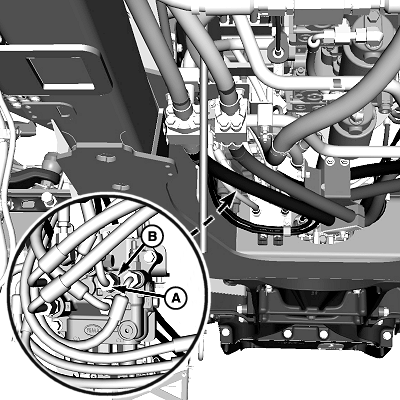

   N104336-UN-12JUL13

   A - Hose Fitting

   B - Strainer Fitting

   Remove hose fitting (A) from port P on AutoTrac valve.

---




2. Remove strainer fitting (B).

3. Clean contaminants from strainer.

4. Install stainer fitting in port P of AutoTrac valve. Tighten to specification.

   Item	Measurement	Specification
   Strainer Fitting	Torque	100 N·m 74 lb.-ft.

5. Install hose fitting to strainer fitting. Tighten to specification.

   Item	Measurement	Specification
   Hose Fitting	Torque	61 N·m 45 lb.-ft.

6. Verify proper hydraulic oil level in reservoir. Add oil as necessary.
